I thought I would build a yuloh to try out on my 26foot keel yacht

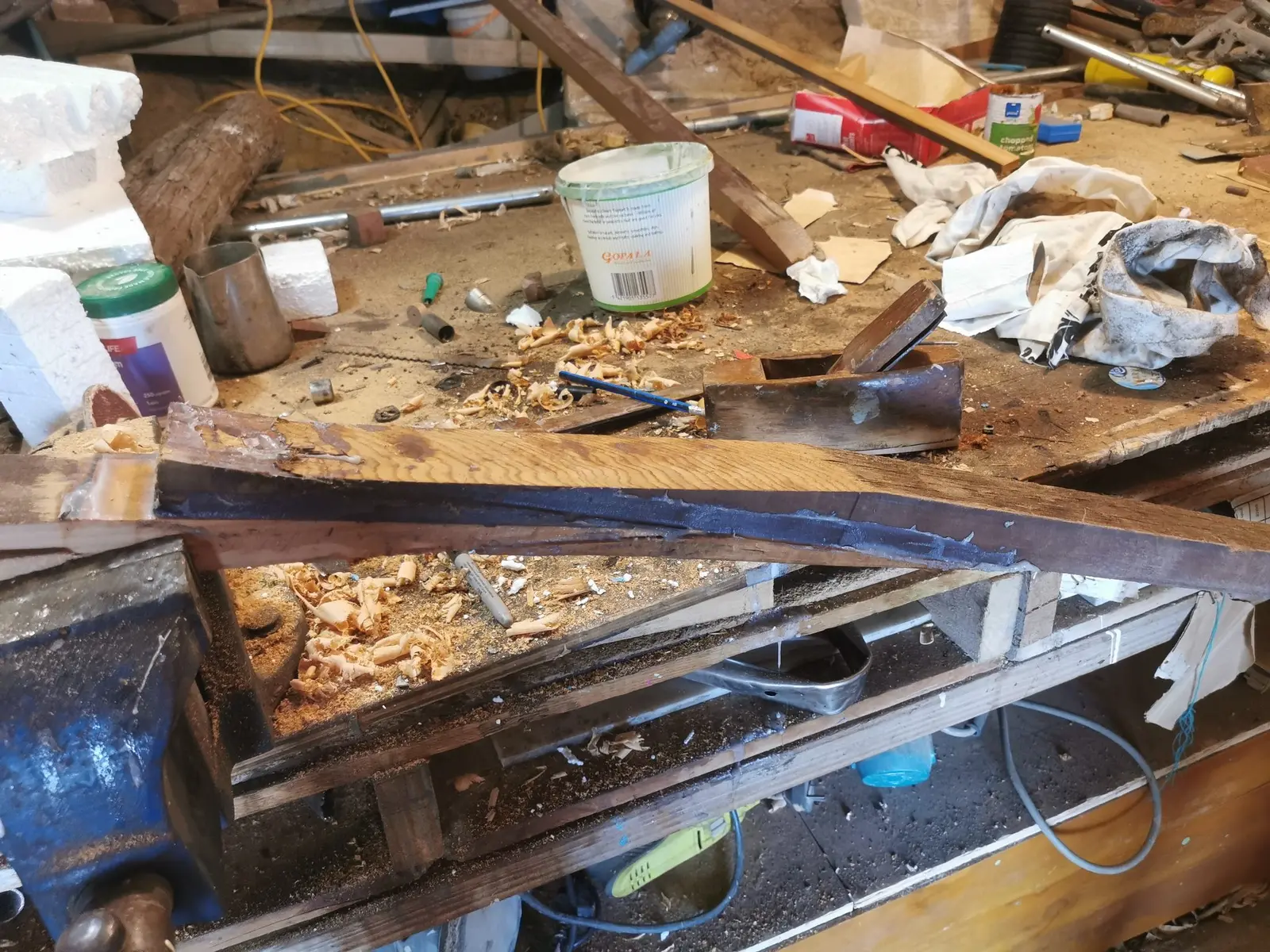

The scarf is 15" long with a wedge glued in to get enough angle with out making the joint too short. The cedar scantlings are the timber I had at hand, I will add a couple of lamination to get final size

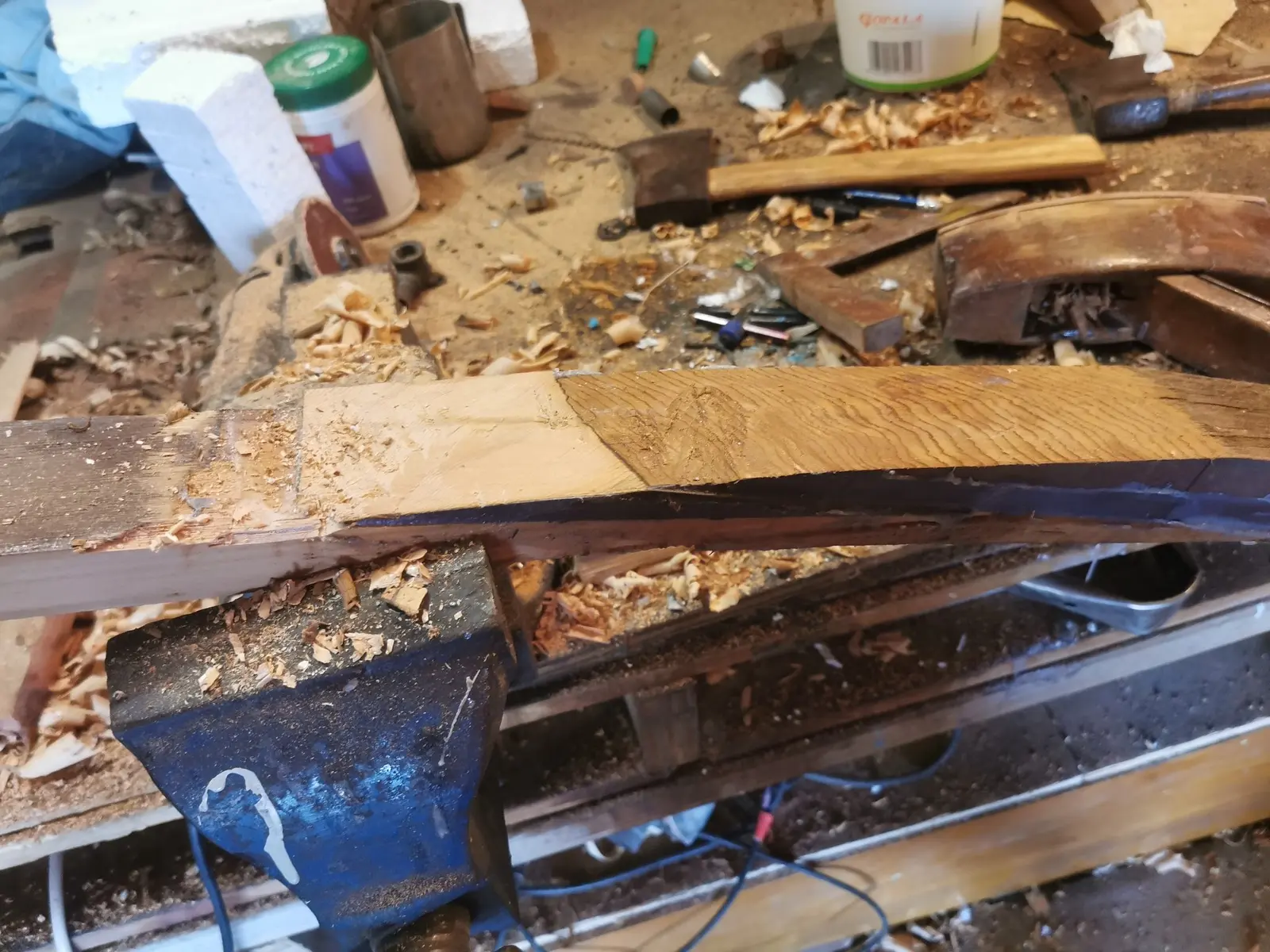

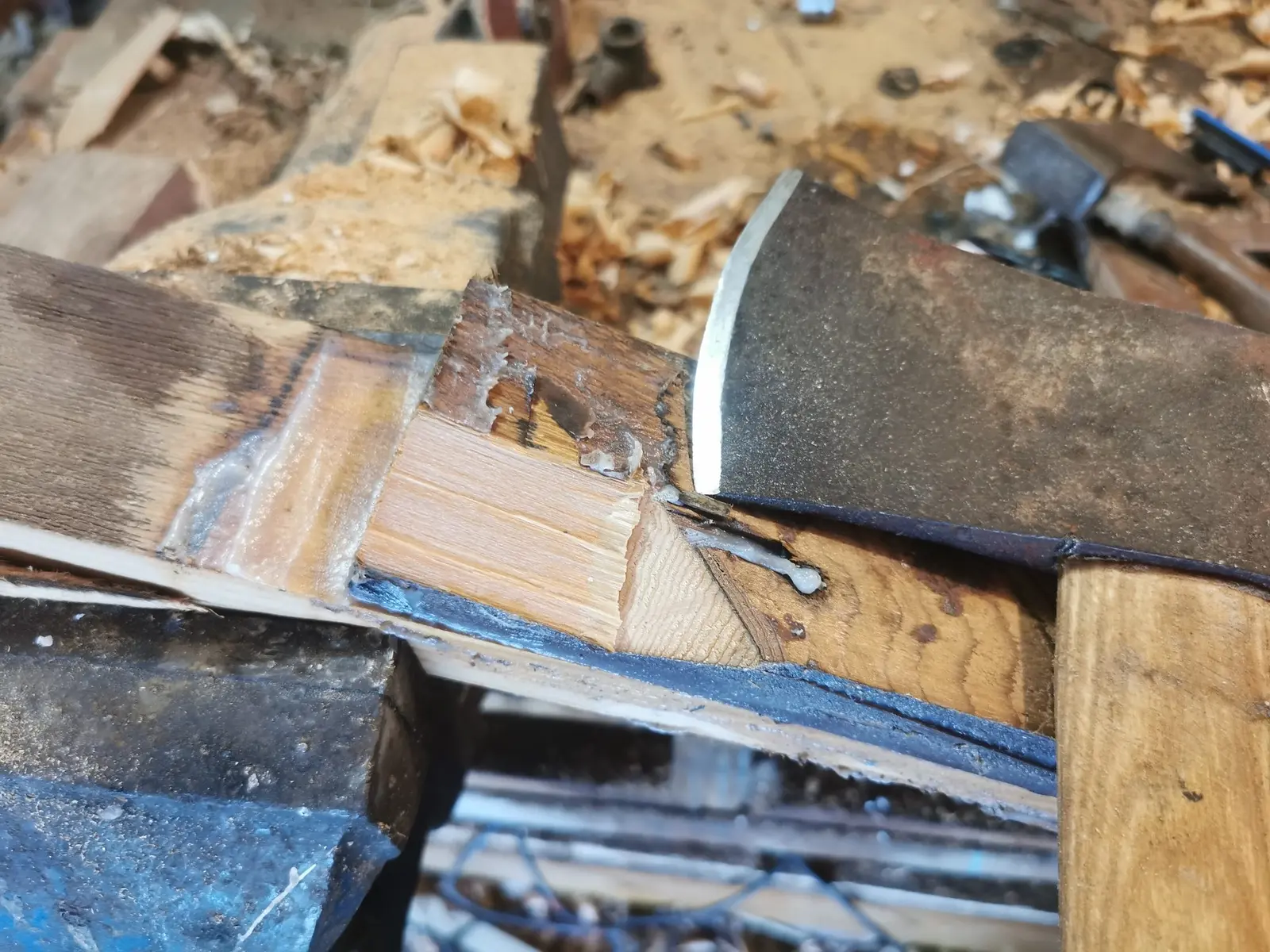

Cleaning up the scarf area with my favourite tool, the broad hatchet. I will the laminate a couple of layers of spruce either side.

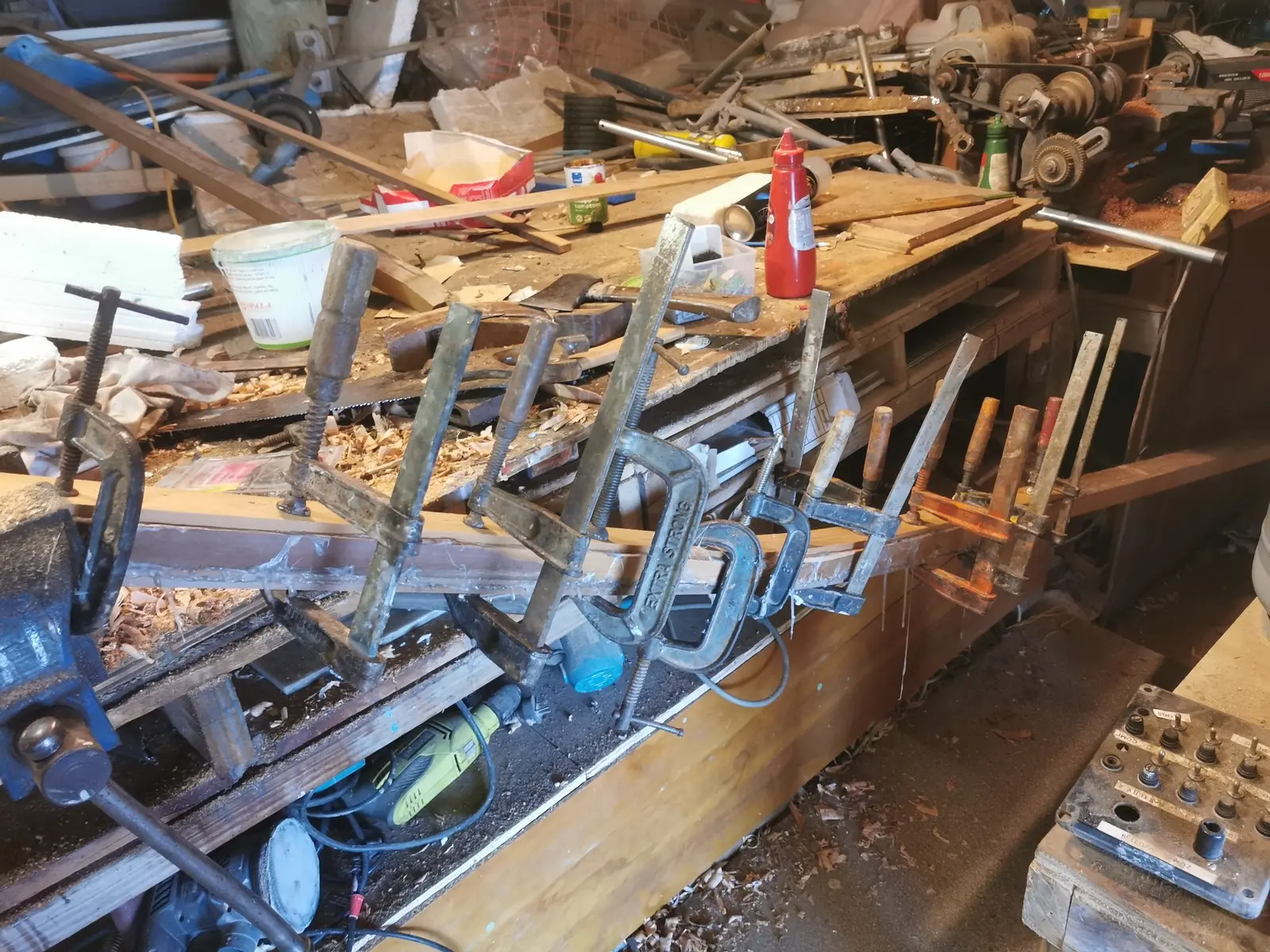

Scarf cleaned up and 2 layers of 3/16 spruce laminated from the handle to 18" or so past the scarf

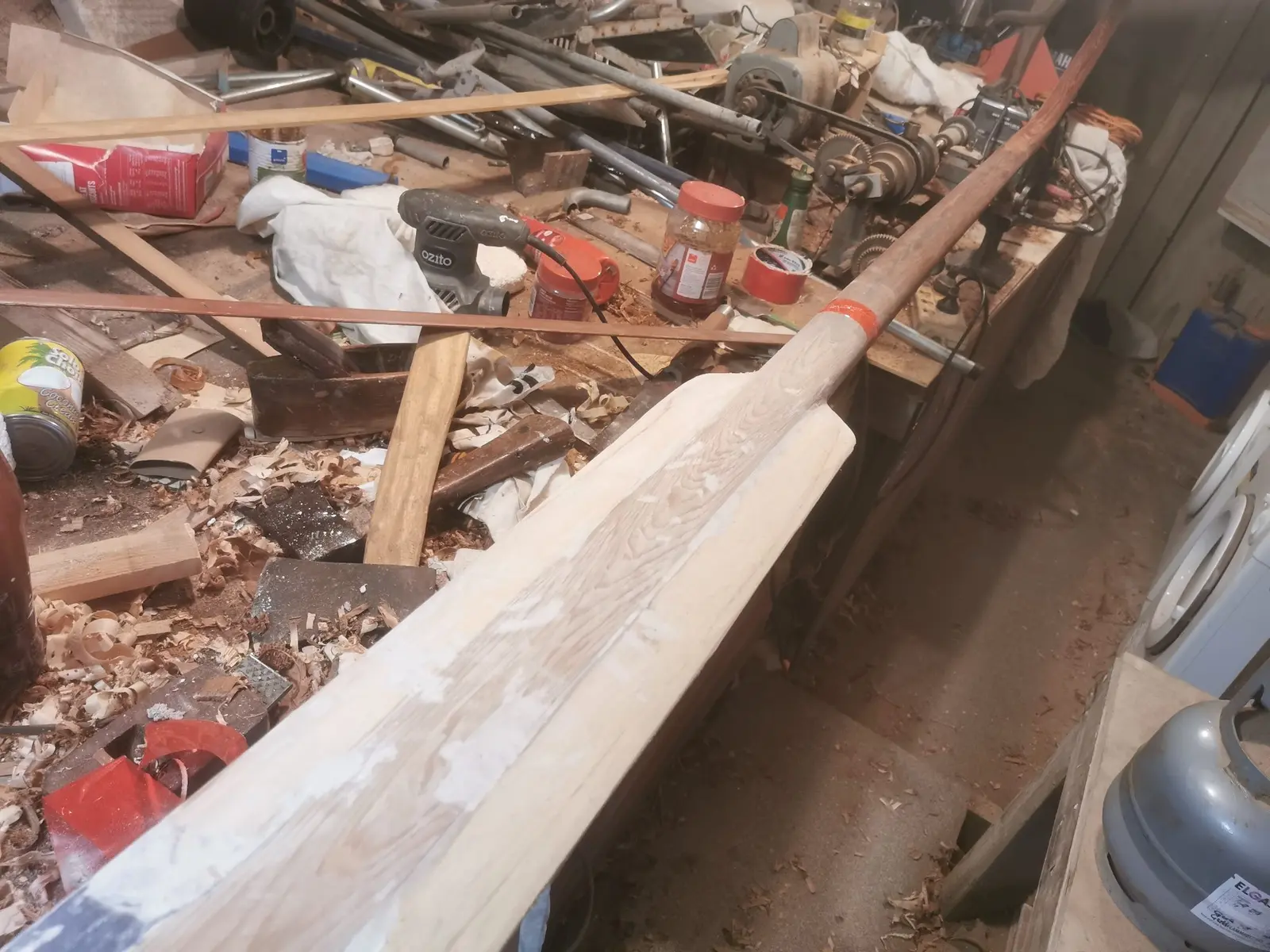

Laminates faired up and side strips for the blade glued on.

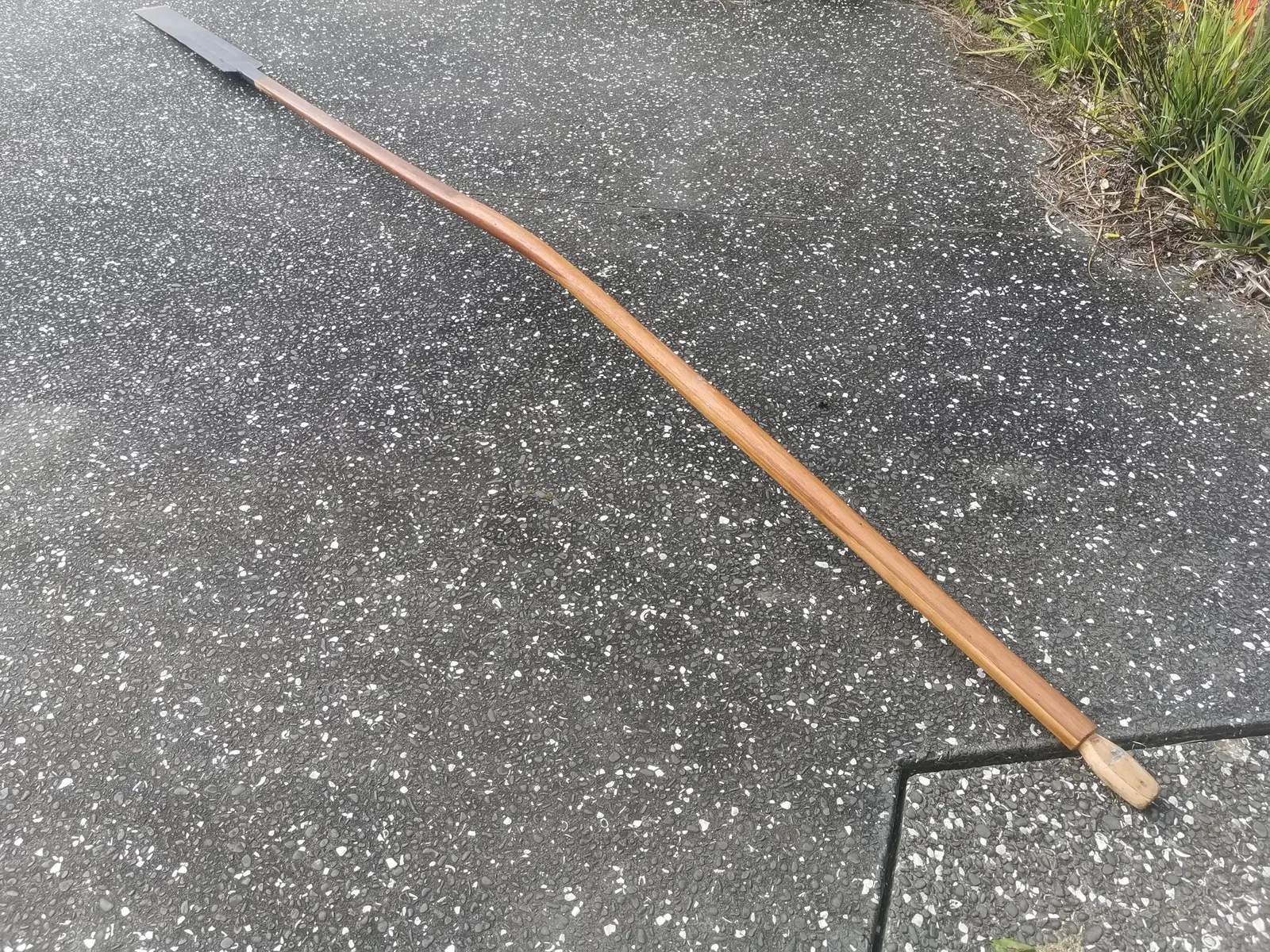

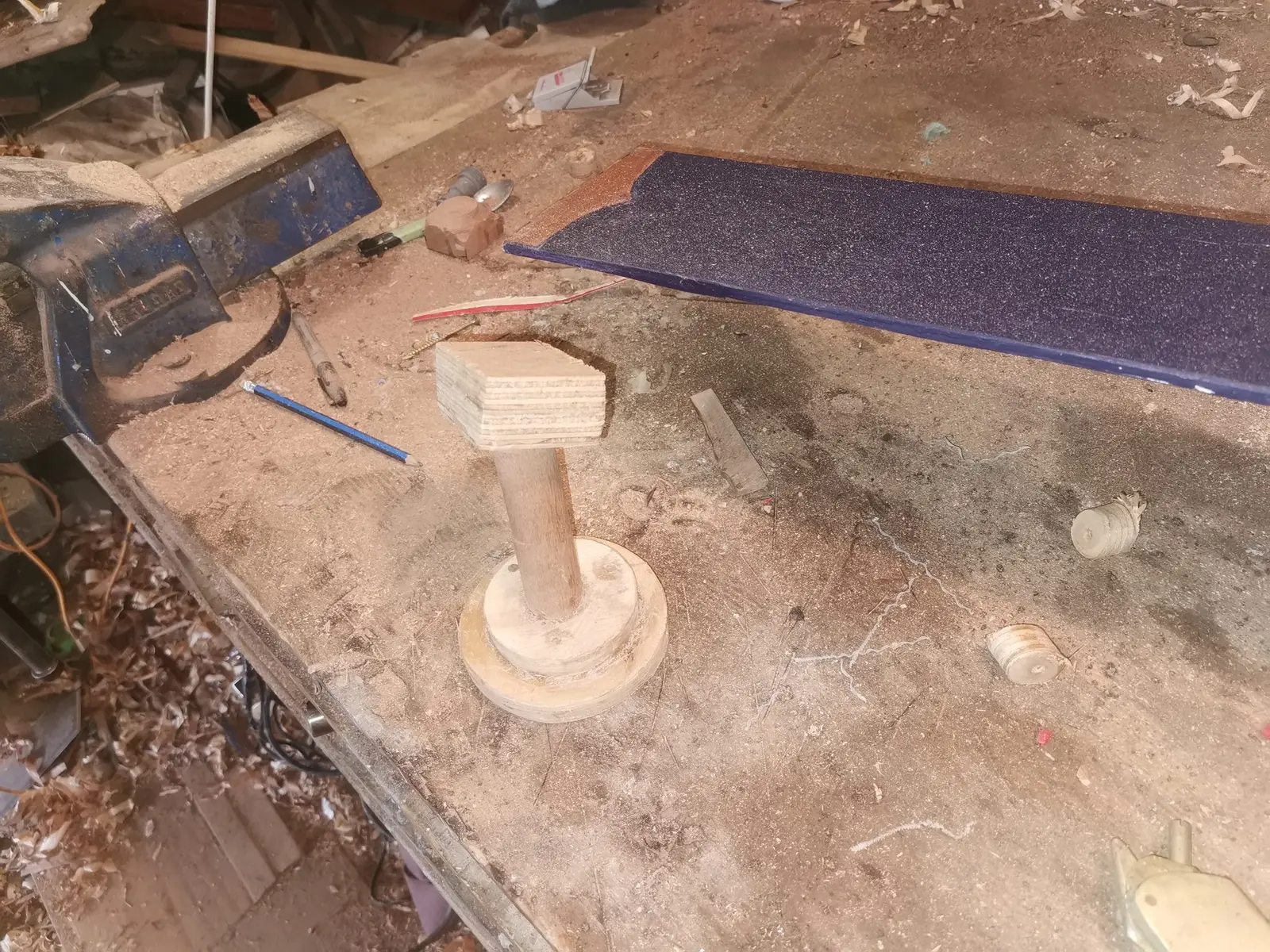

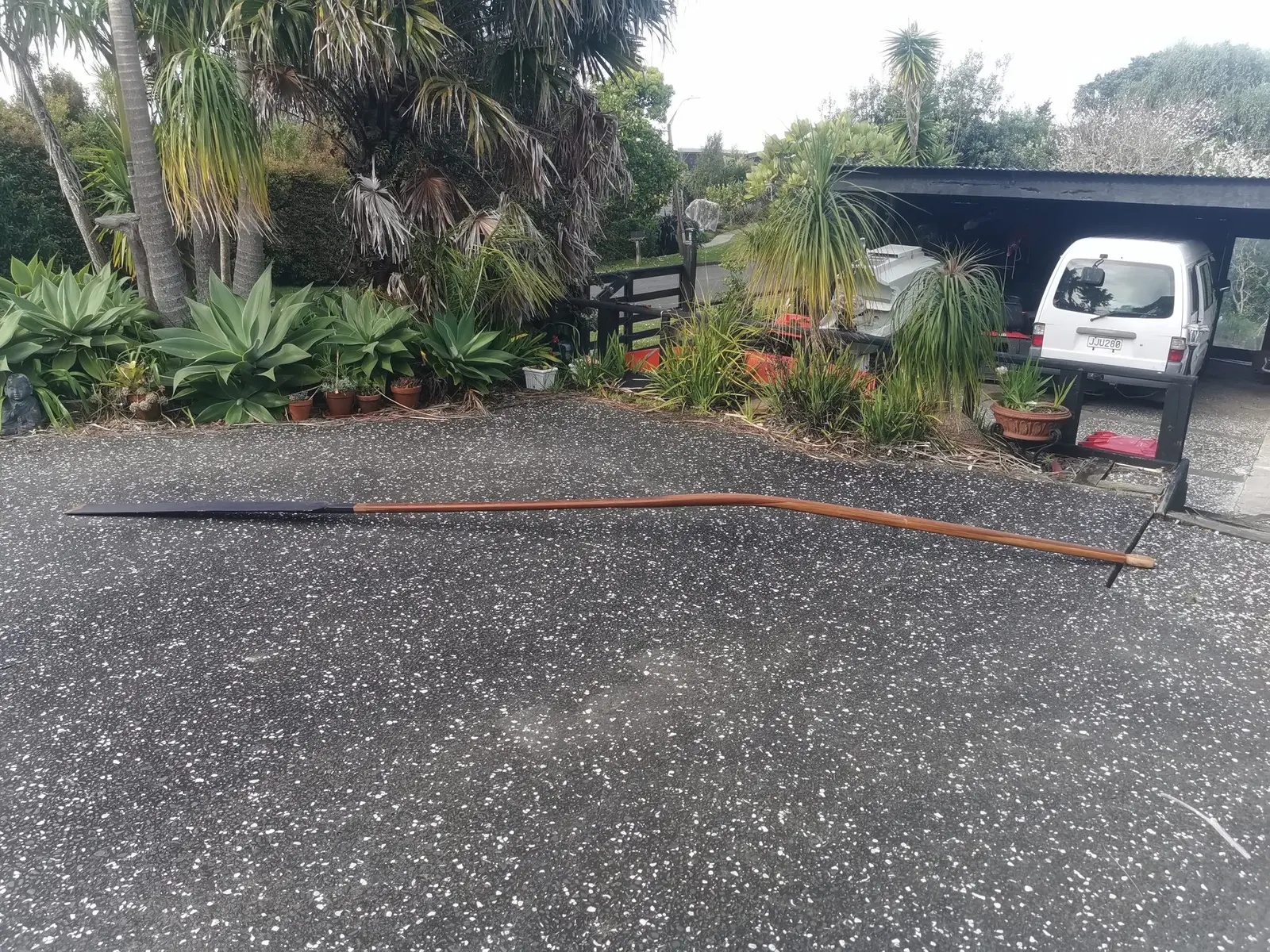

Yuloh finished, it is rather an awkward thing, and pivot and socket made

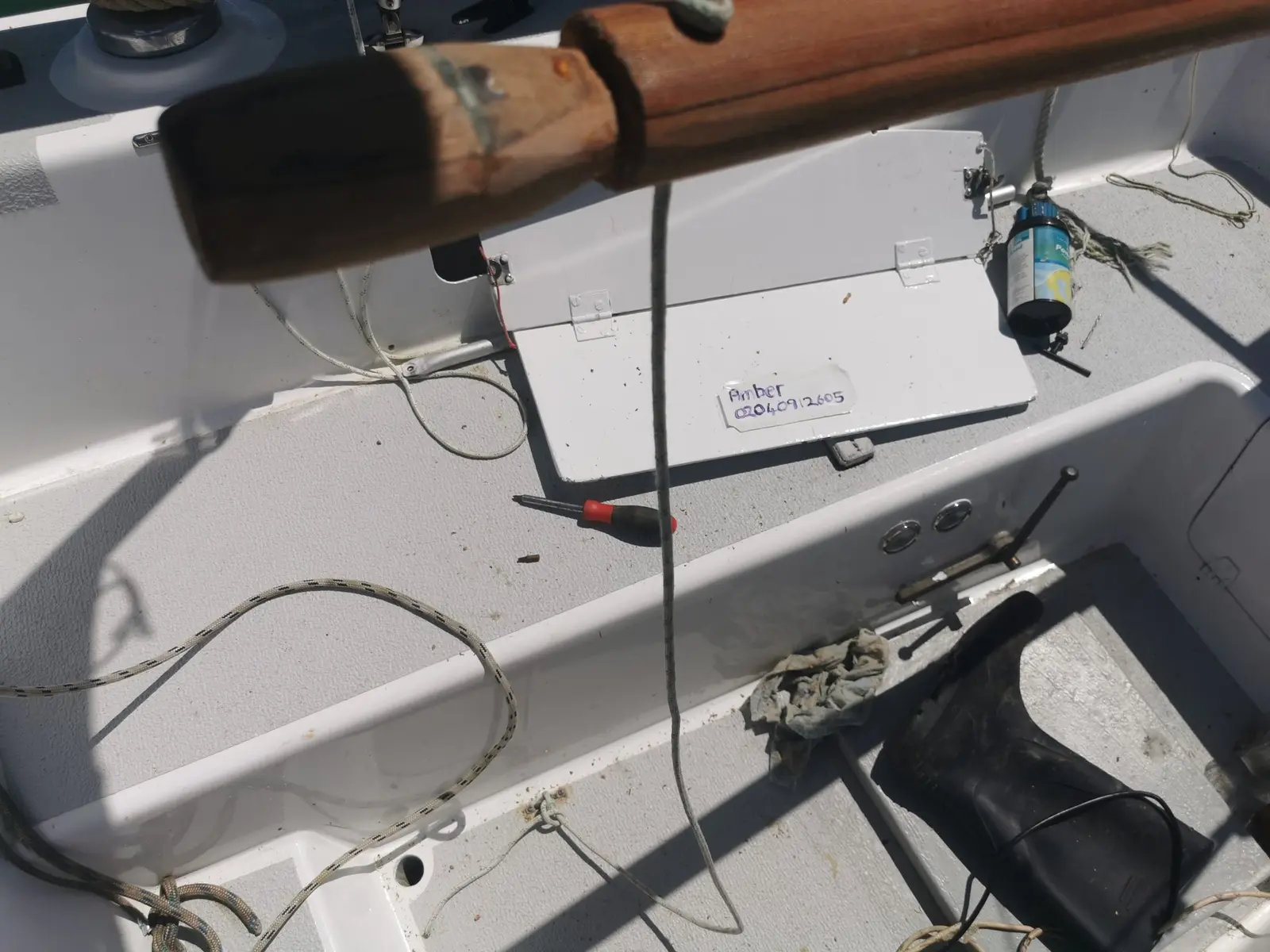

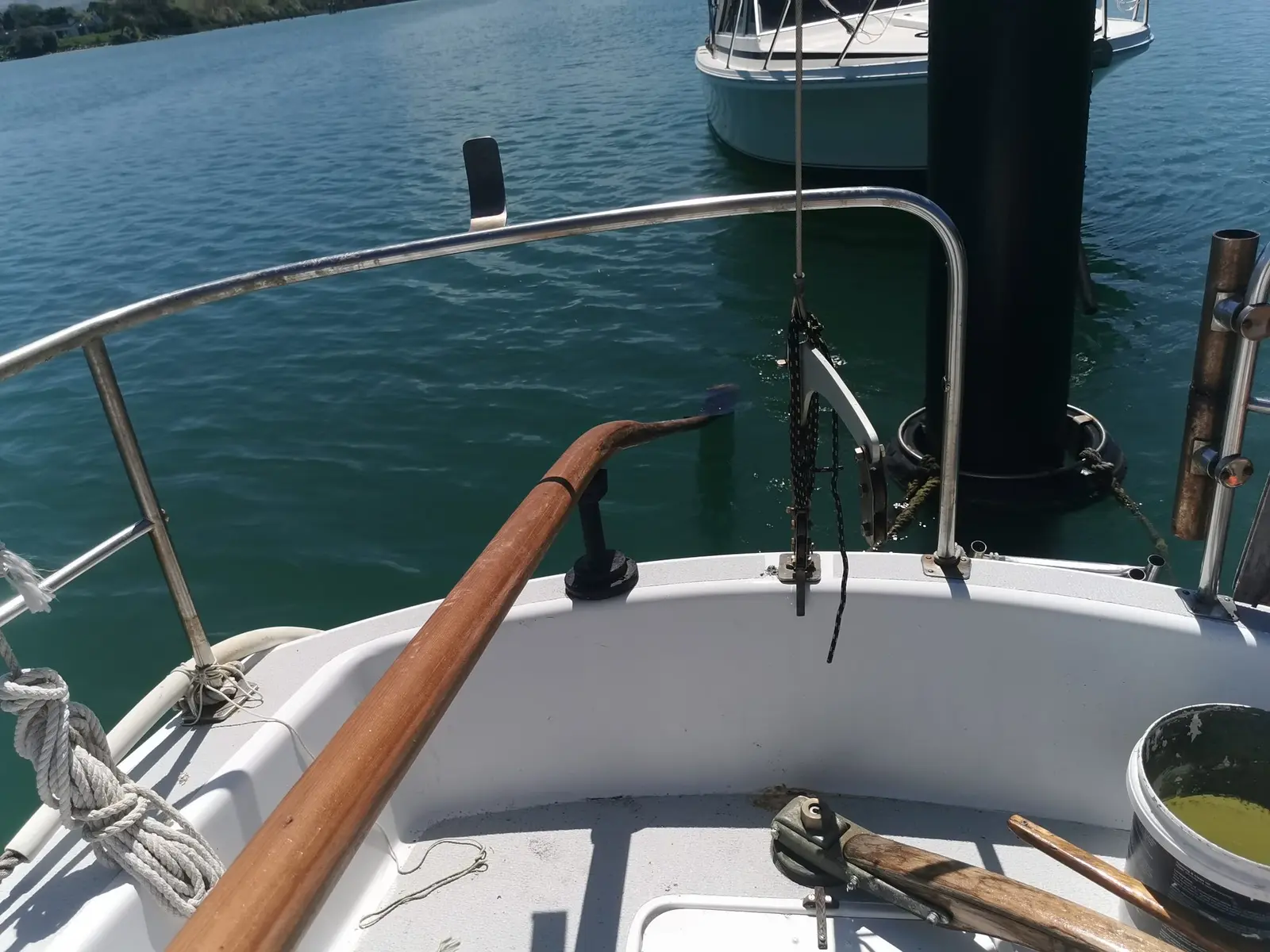

All done, just awaiting an opertunity to get out to the boat and try it!
