-Ripple- Ultralight dinghy from scratch build

by Mark Elwell · Jensen Beach, Florida · Message Mark Elwell

I have been thinking about a dinghy for my boat. After looking around for a commercial built dinghy under 50 pounds, found that I may have to build it. So I ordered the PDF files from Chesapeake light craft to build the ultralight 6 foot dinghy. I am going to build it from scratch with no kit, maybe save a little bit of money in the process. Hopefully I can keep the weight under 45 pounds.

Make a book Feed The whole log, 14 entries and every photo, laid out as a book to print, bind and keep.
14
Entries
260
Hours
n/a
Written up afterwards
51
Photos
Spent
Oct 2025
Started
Hull Exterior · other boats 16 h Link

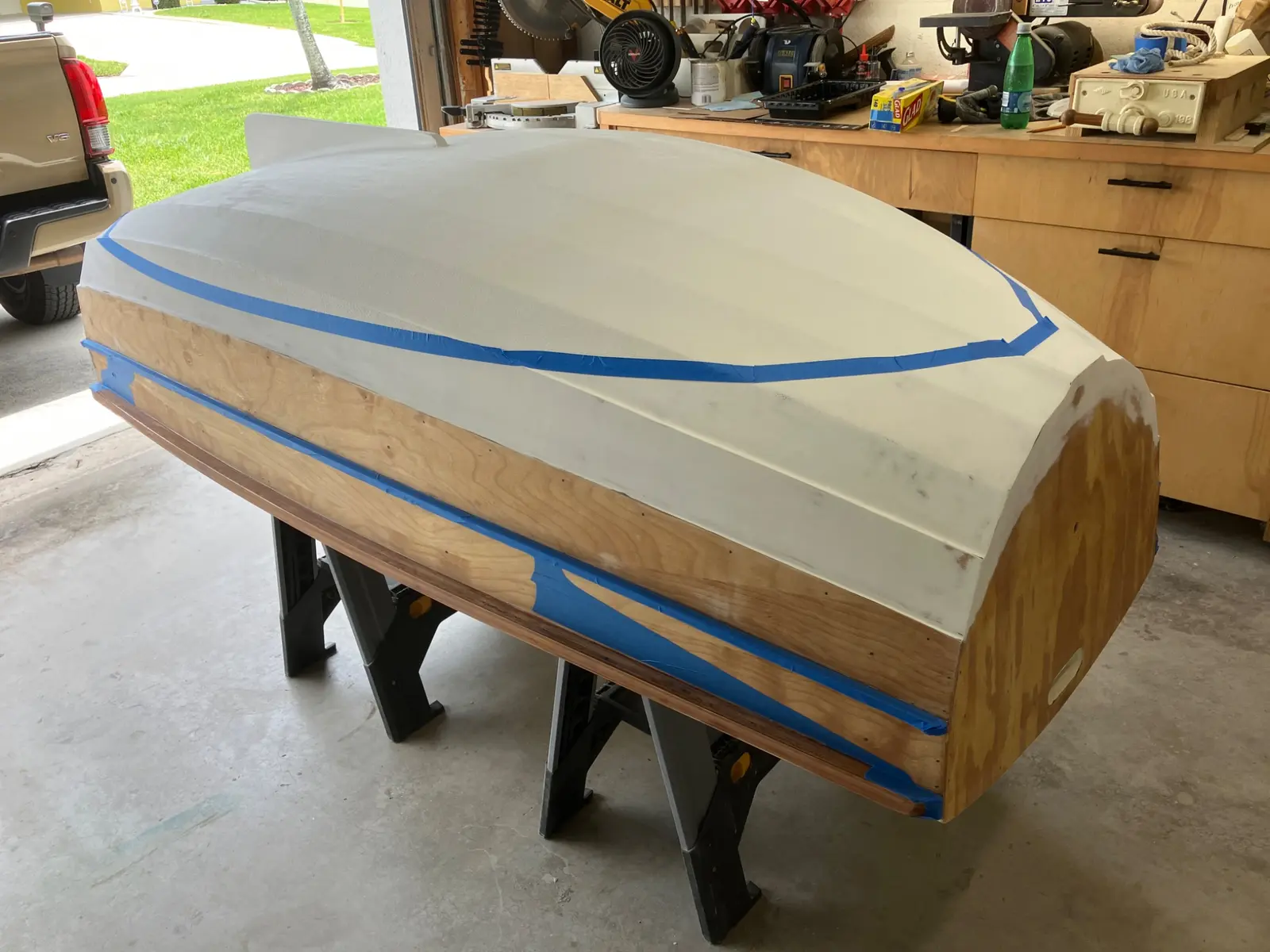

Adding a durable gel coat bottom.

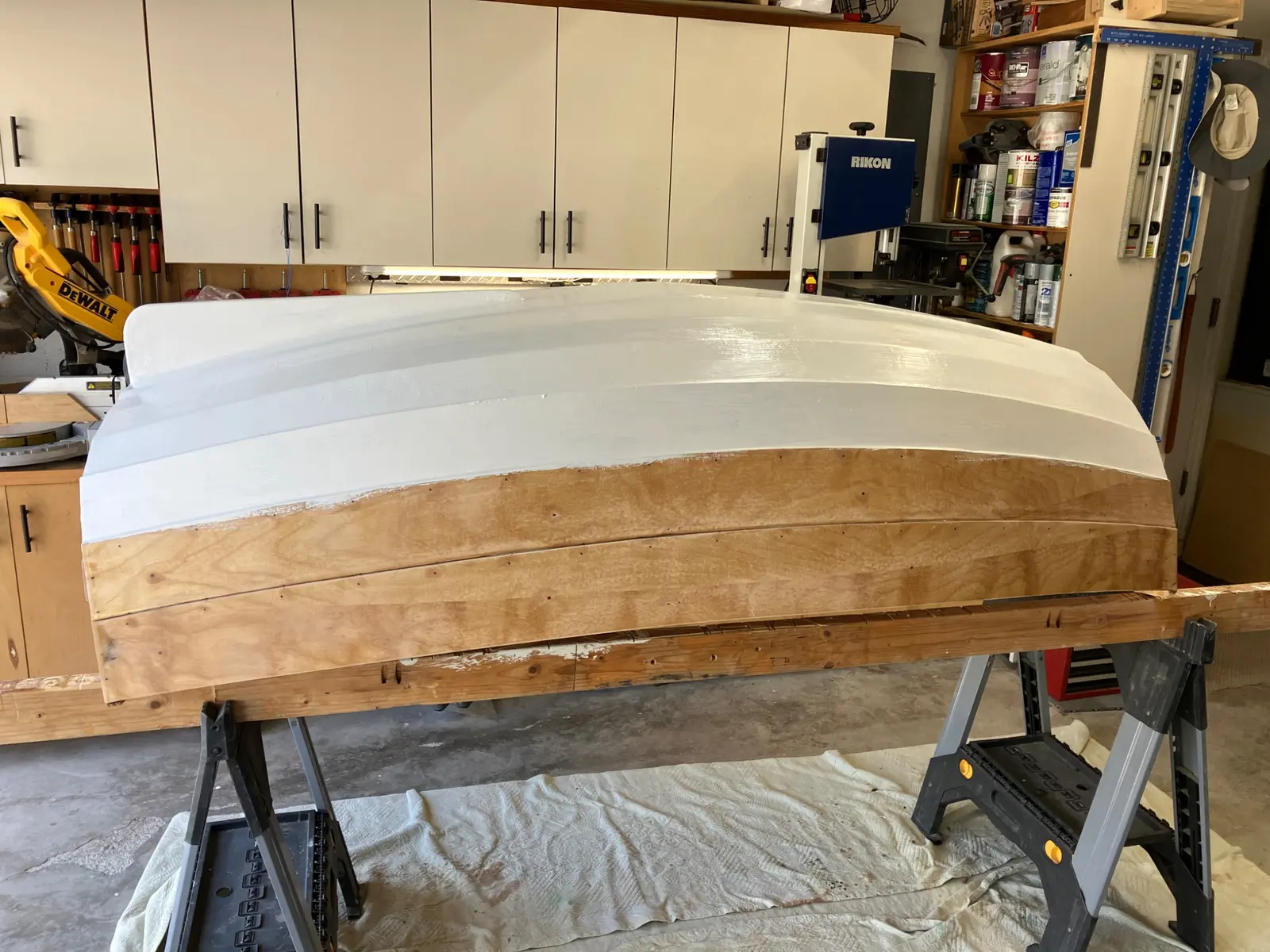

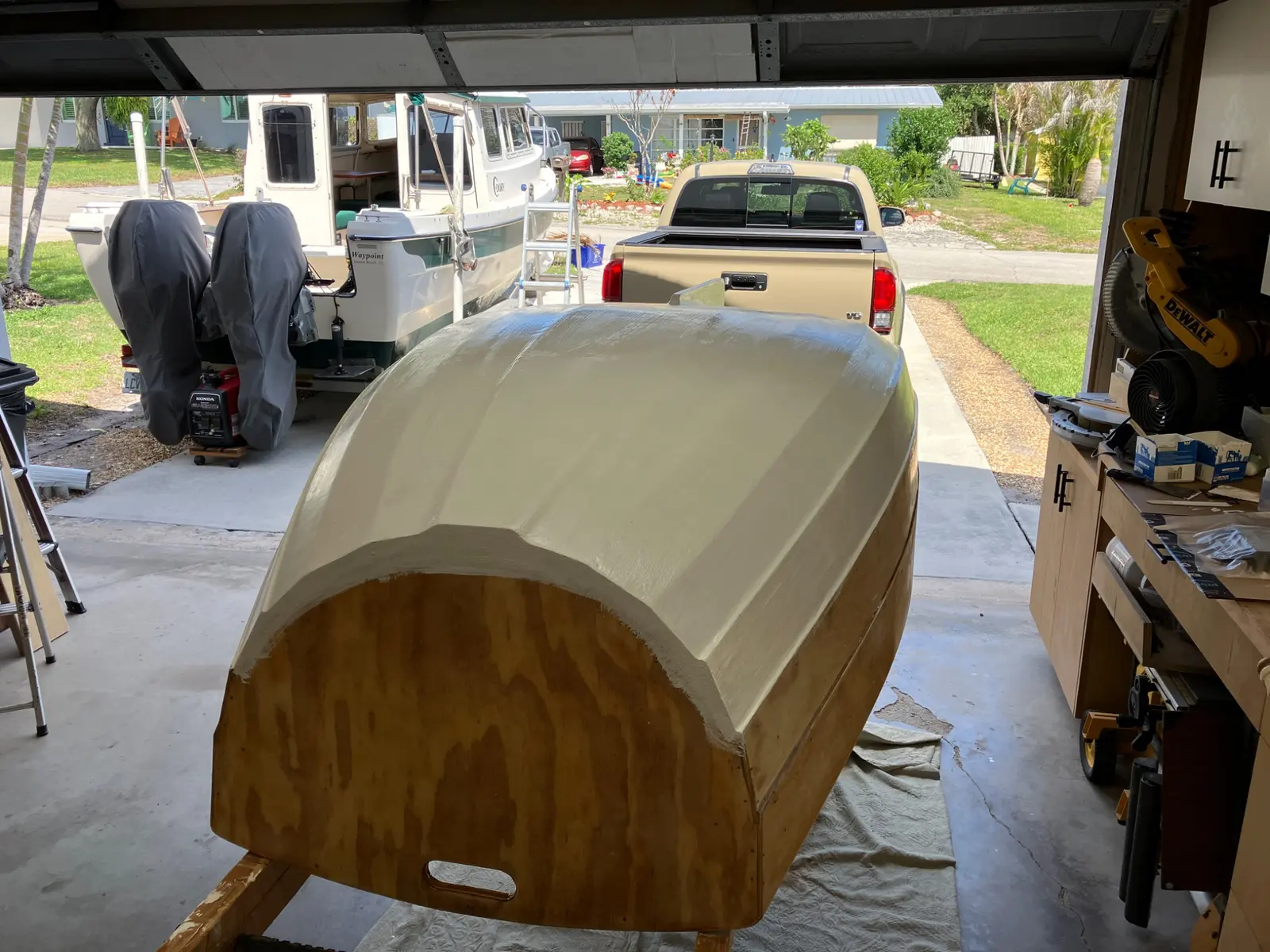

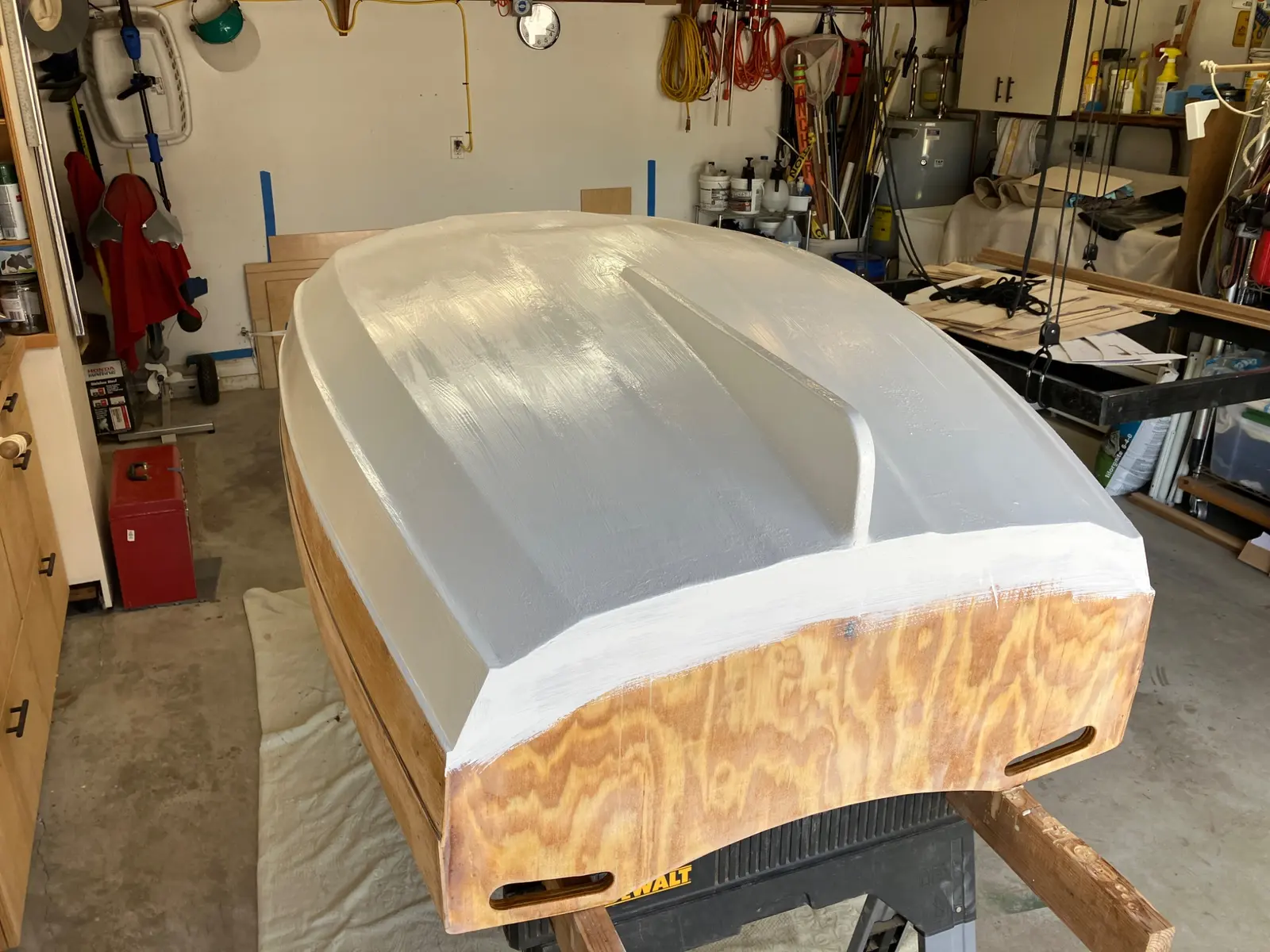

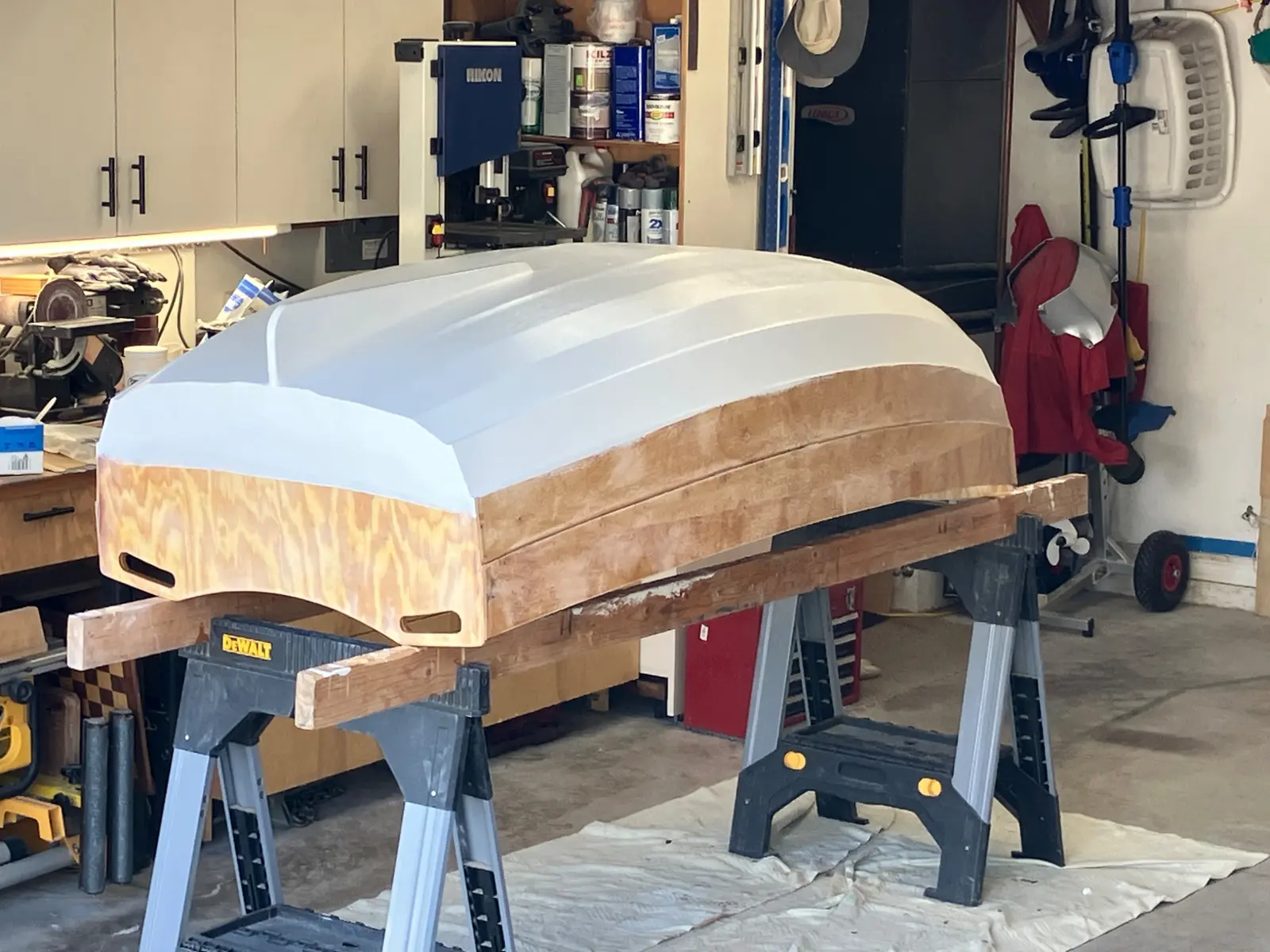

When I built this dinghy, it was meant to be used and abused. So I didn't want to have a fancy nice clean painted bottom that was gonna be high maintenance and scratch easy. So I built up the bottom with gel coat nothing fancy, just rolled it on with a high build nap roller. I was going to polish it up and make it shiny but then I thought it's gonna get scratched up anyway, so I left it the way it was. It has six coats of gel coat on the bottom. By doing this, it adds substantially to the weight of the finished boat.

1 Ultralight Dinghy: Adding a durable gel coat bottom.
2 Ultralight Dinghy: Adding a durable gel coat bottom.
3 Ultralight Dinghy: Adding a durable gel coat bottom.
4 Ultralight Dinghy: Adding a durable gel coat bottom.
Hull Exterior · other boats 24 h Link

Rubber rail installation.

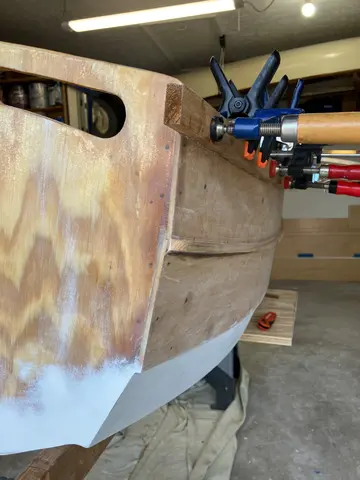

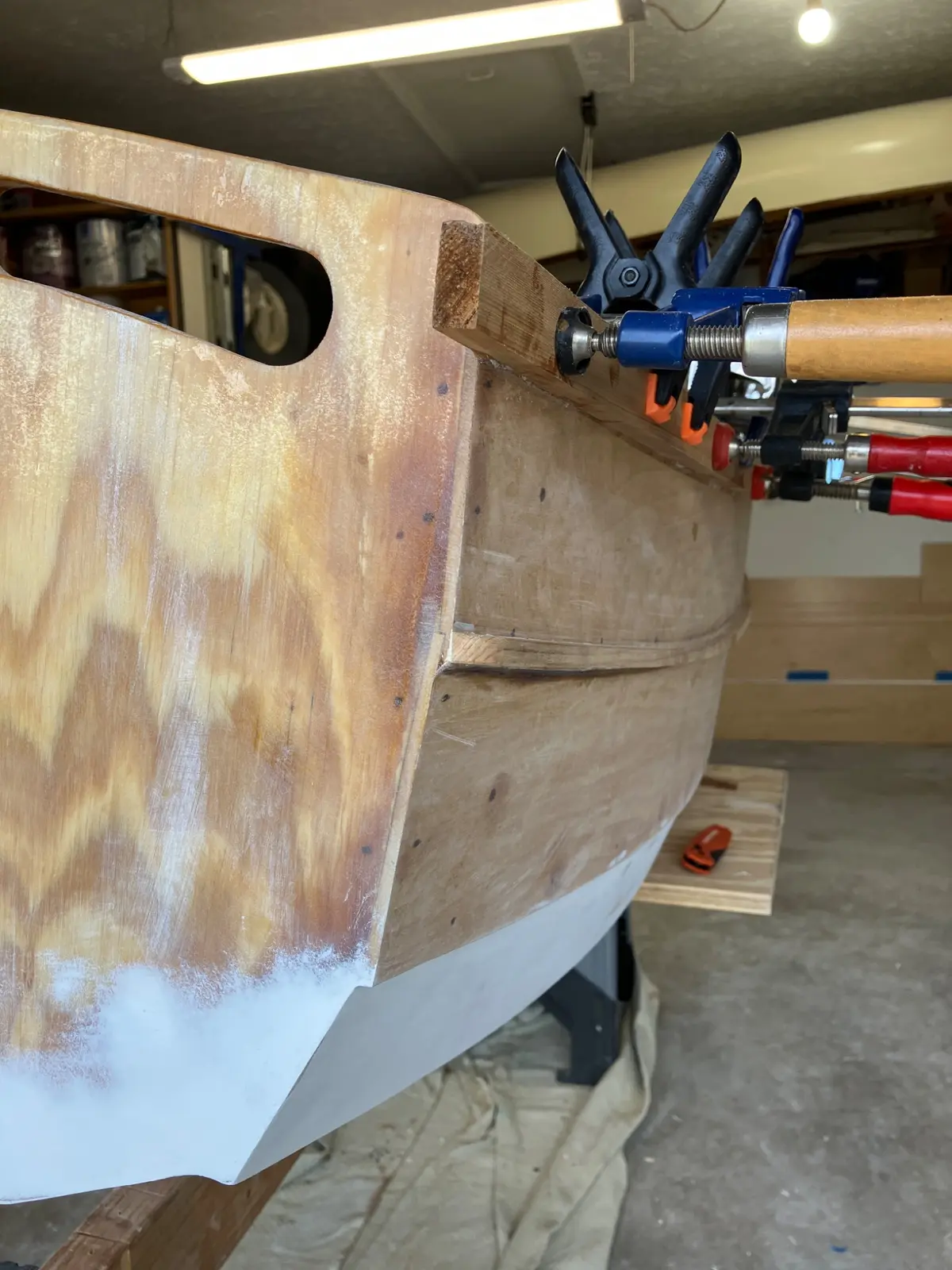

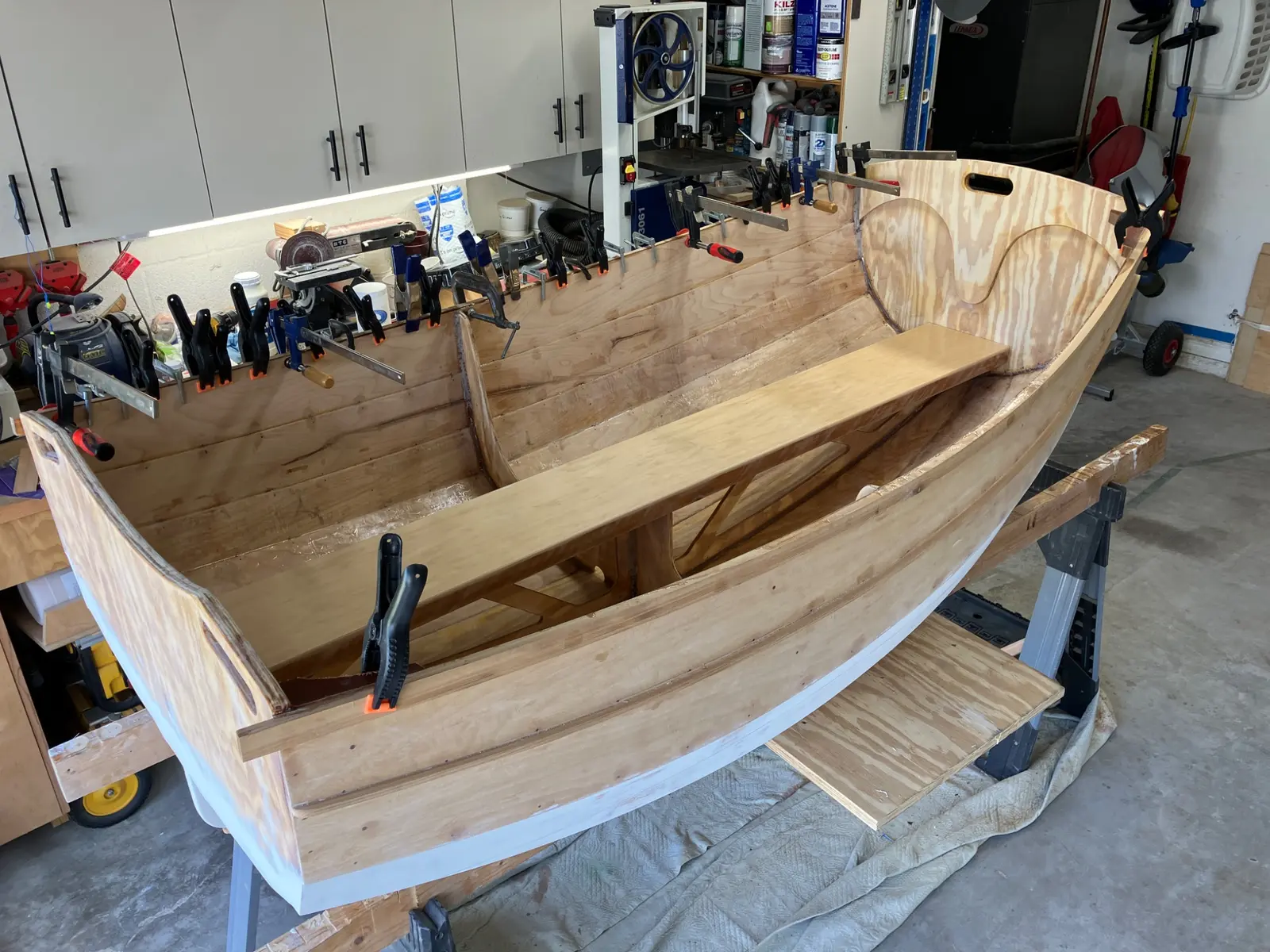

These pictures show how many clamps it takes just to put one side of the rub rails on. The boat is so small and curvy that I had to strip the rails into two pieces to make the compound bends in such a short distance of 6 ft. I used western red cedar for the rails this saves on weight and rot resistance.

1 Ultralight Dinghy: Rubber rail installation.
2 Ultralight Dinghy: Rubber rail installation.
Interior & Cockpit · other boats 24 h Link

Painting inside

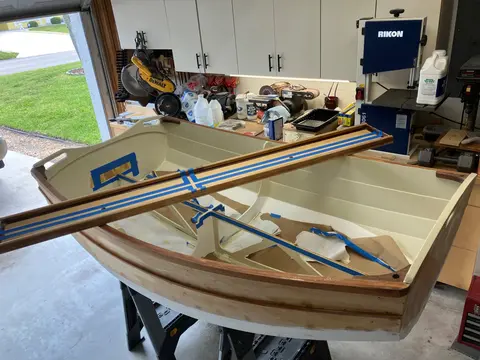

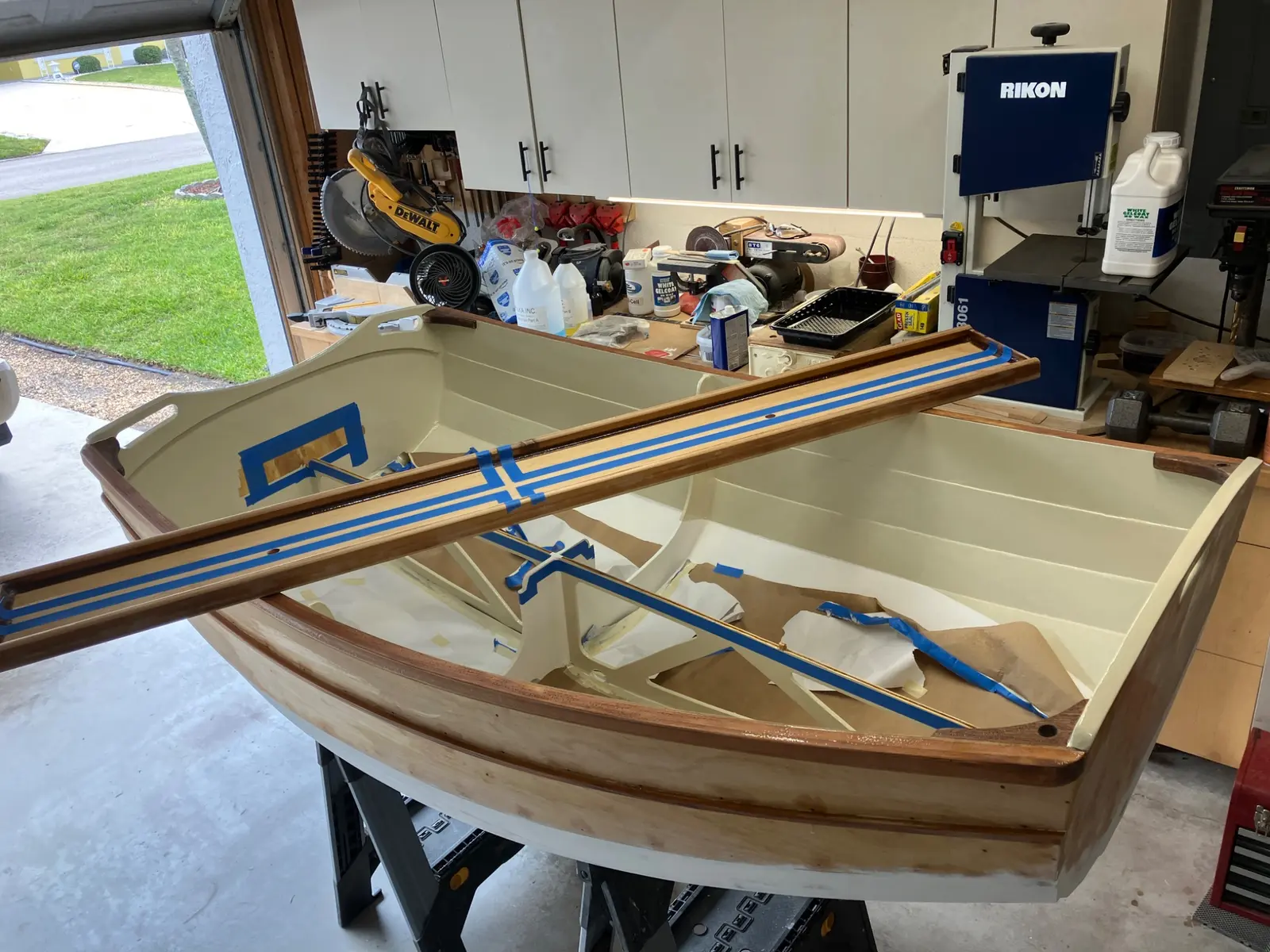

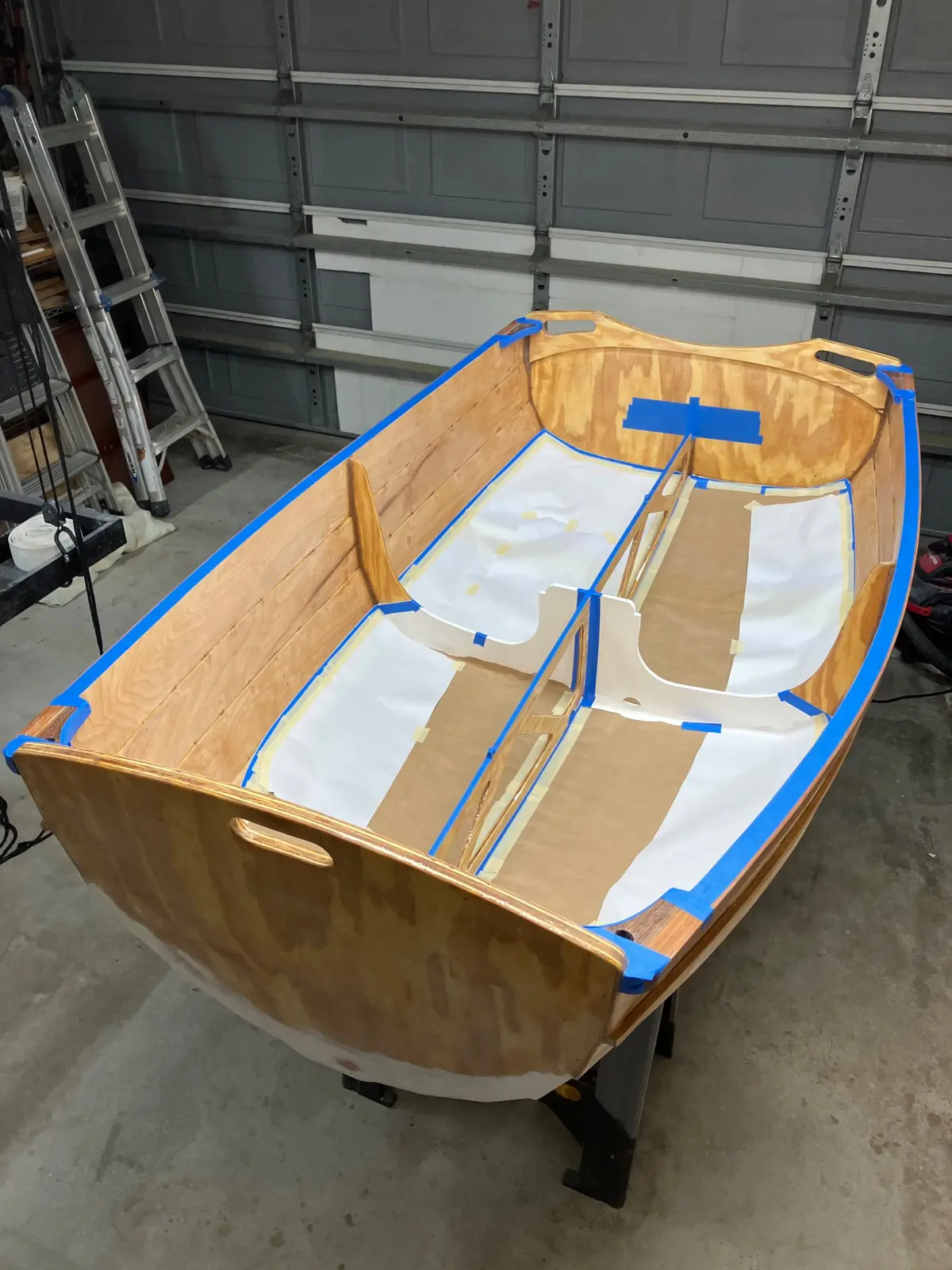

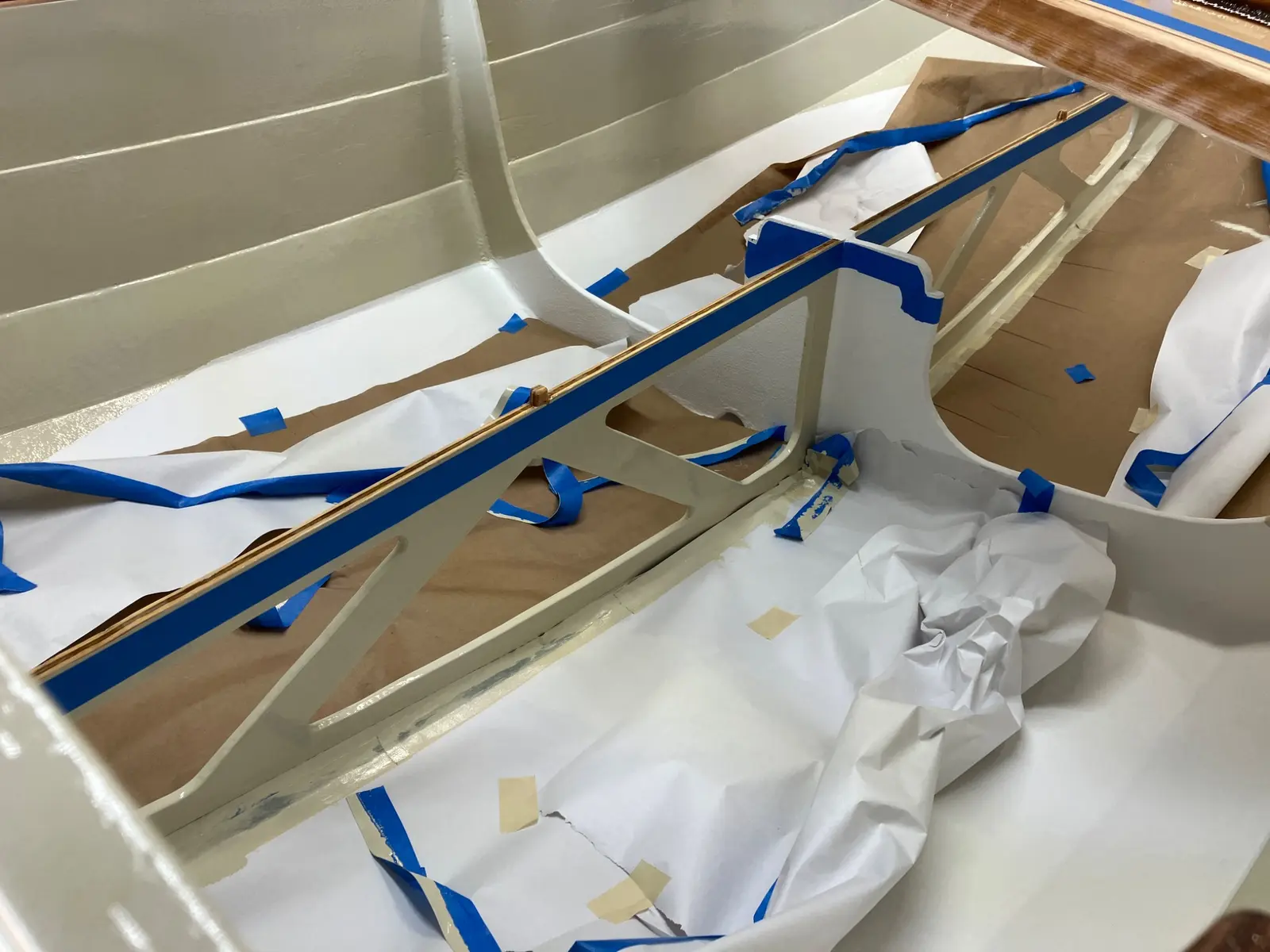

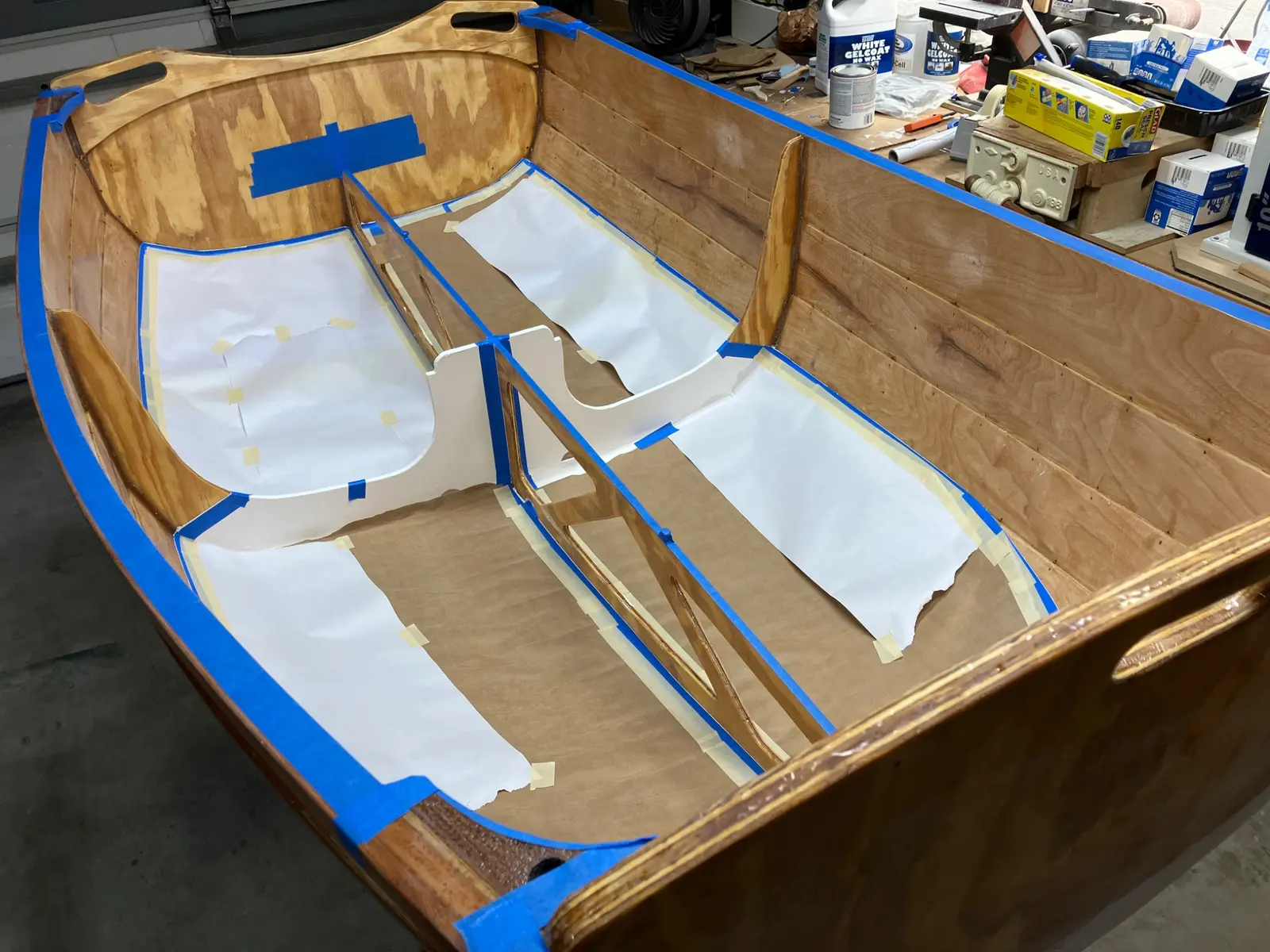

These pictures show the taping that went in for the interior paint job. A gel coat of the inside deck for more durability and scratch resistance. On the sides, I painted with almond Rust-Oleum "out of the can enamel" from Home Depot. Nothing fancy or expensive, just wanted it to work, and look good.

1 Ultralight Dinghy: Painting inside
2 Ultralight Dinghy: Painting inside
3 Ultralight Dinghy: Painting inside
4 Ultralight Dinghy: Painting inside
Interior & Cockpit · other boats 18 h Link

Seat installation.

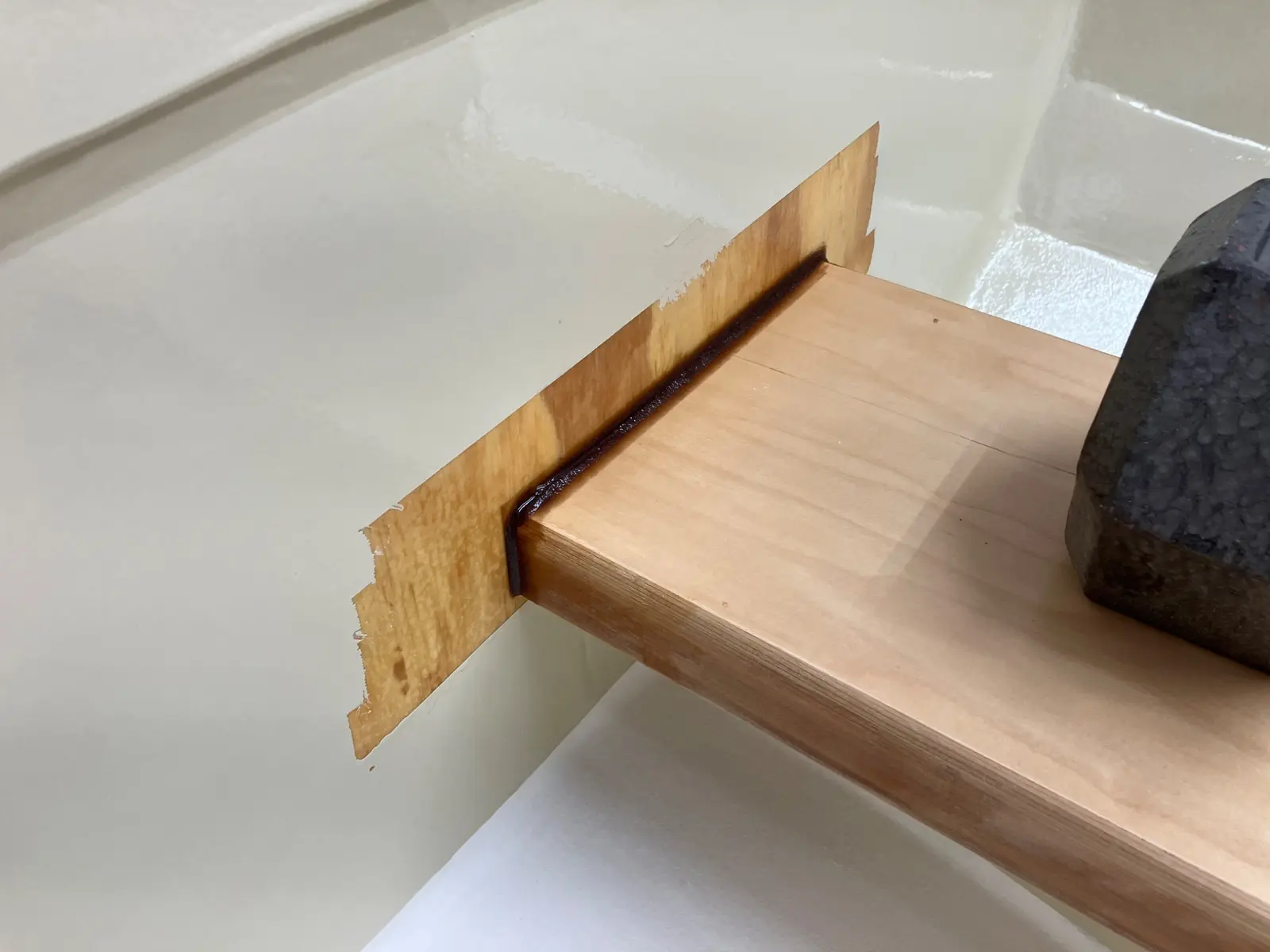

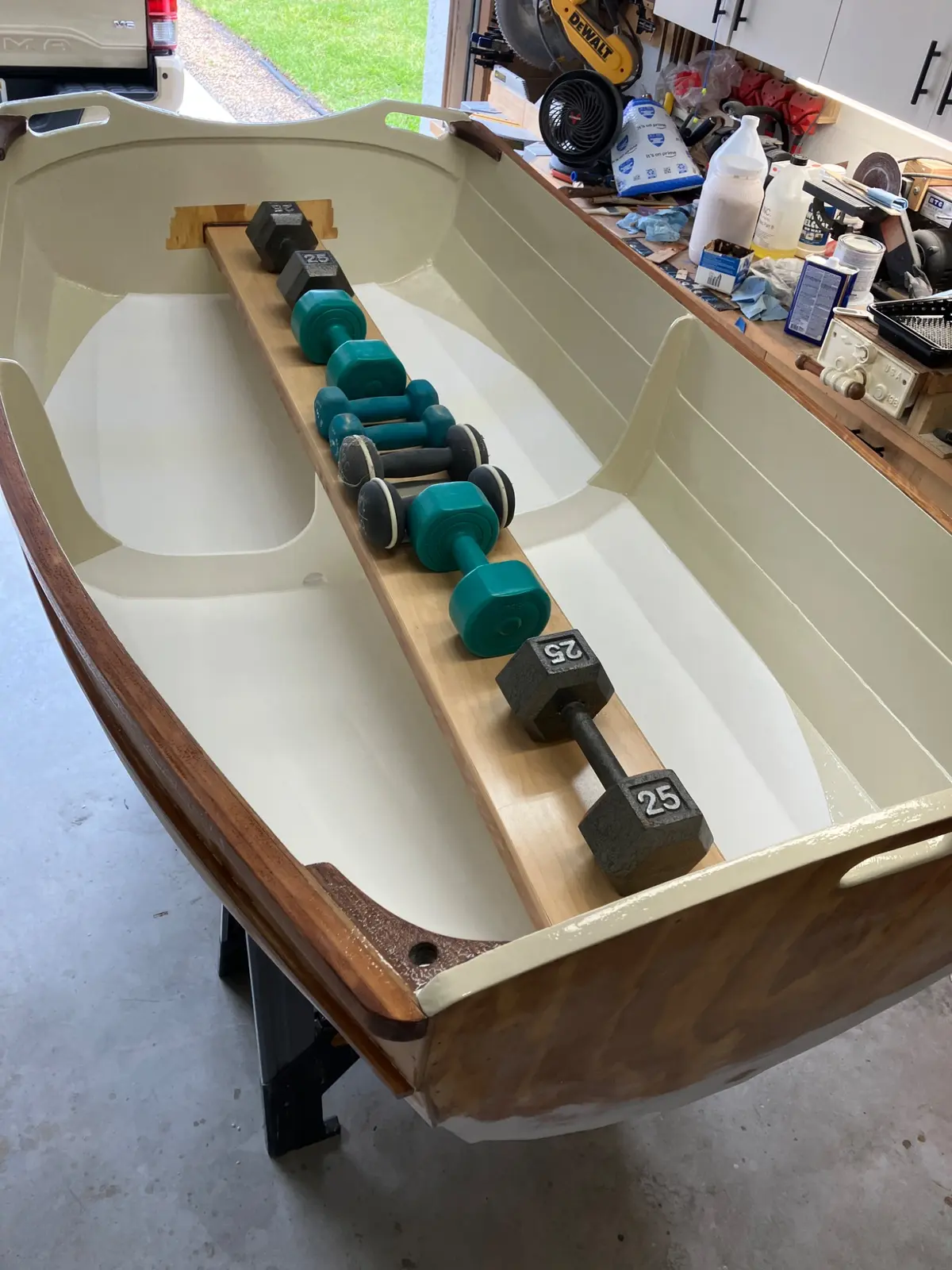

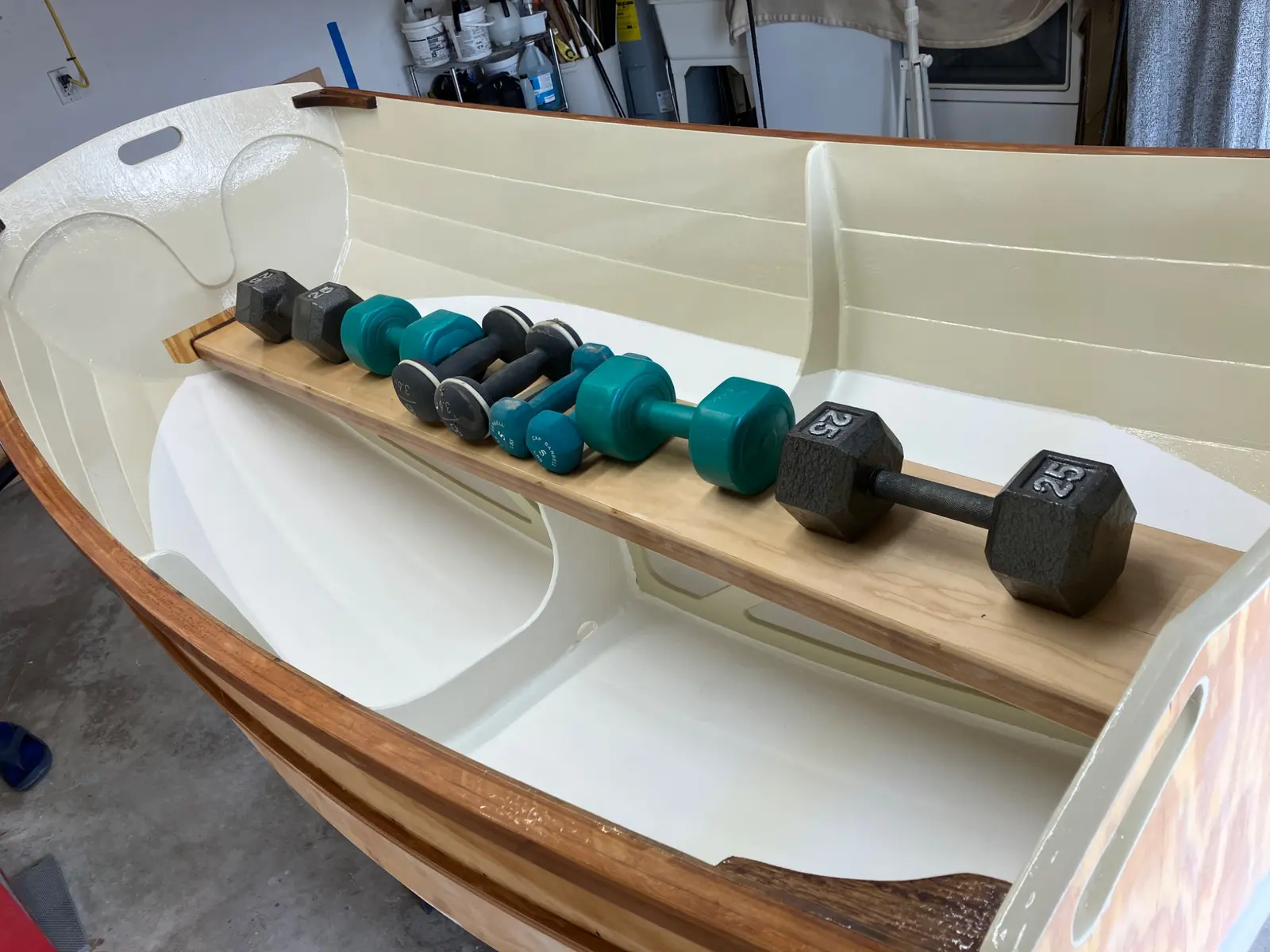

This is when I installed the bench seat. The bottom has fillets underneath to the strong back. The front and back parts are flooded to the stern bulkhead and bow bulkhead. I was able to get a workout in during this time. Notice the white gel coat in the floor for durability and ease of cleaning.

1 Ultralight Dinghy: Seat installation.
2 Ultralight Dinghy: Seat installation.
3 Ultralight Dinghy: Seat installation.
Interior & Cockpit · other boats 8 h Link

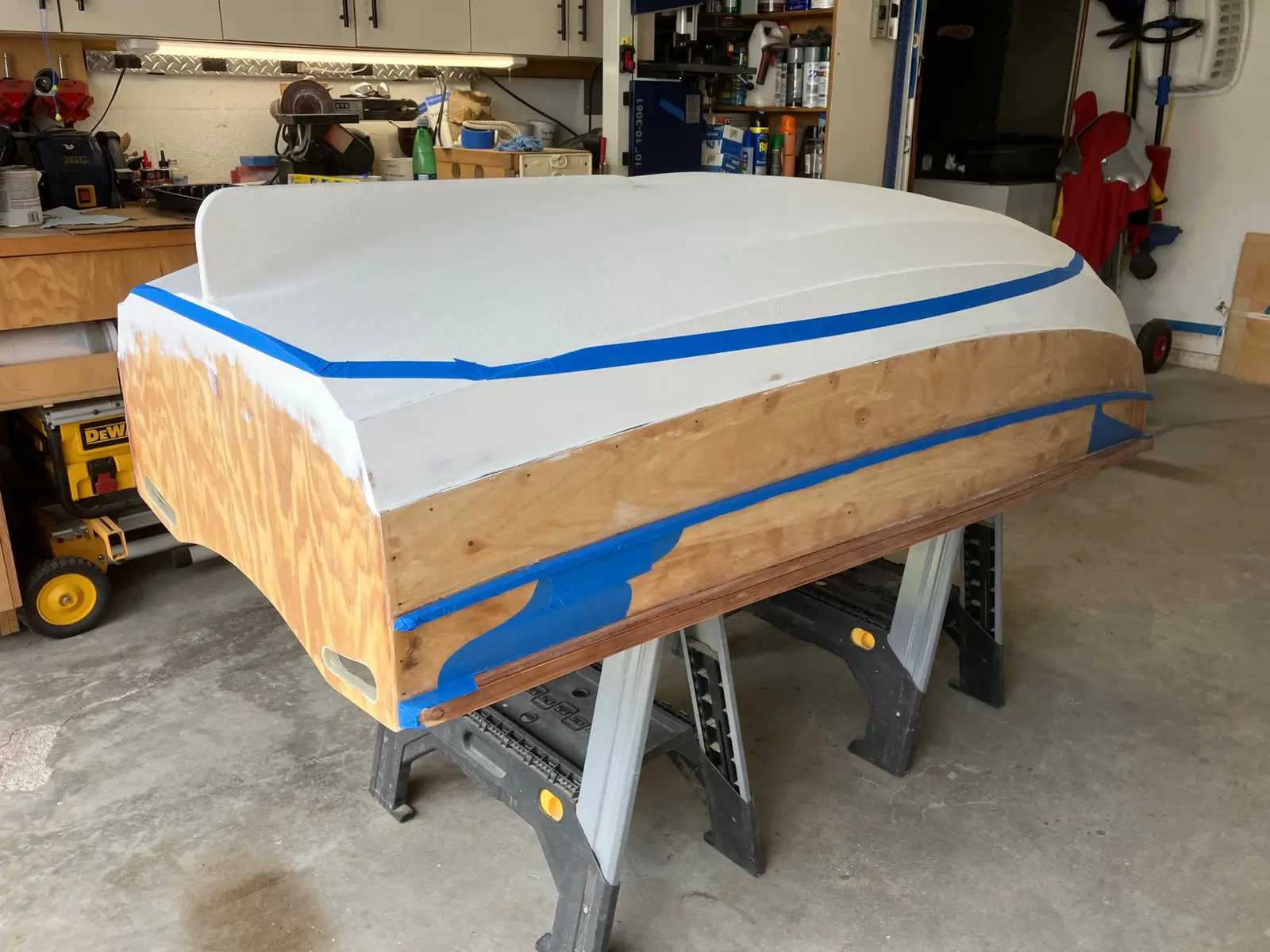

Struck a waterline, more taping for the green accent, stripe under the rub rail.

1 Ultralight Dinghy: interior & cockpit
2 Ultralight Dinghy: interior & cockpit

Nobody else here is logging a Ultralight Dinghy yet. See the boat.

What it cost

$976.67
$662.70
Into the boat
$313.97
Tools & gear
ItemQtySupplierCost
Chesapeake light craft digital plans One PDF file download Chesapeake light craft $89.00
Router bits 3 Amazon $58.56
Harbor freight, Palm router 1 router Harbor freight $90.94
3mm door skin plywood 2 sheets Home Depot $30.00
1/4 " sheets of birch plywood 2 sheets Home Depot $160.03
16 gauge wire steel 1 roll Home Depot $13.47
4 ounce fiberglass cloth 3 yards Amazon $21.39
Slow cure high UV resistant epoxy resin 1.5 gallon kit Fiberglass supply depot, Fort Pierce, Fl. $217.54
2" x 8" x 8' Western Cedar Plank 1 (picked up in damaged bin) half price Lowes $21.39
6 ounce fiberglass cloth 3 yards Family donation to project (free) $0.01
Sea Dog Line Oar Sockets (bronze) 2 sets Amazon $72.34
Non-waxed white gel coat 1 gallon Fiberglass supply depot $76.49
Rust-Oleum gloss almond enamel paint 1 quart Home Depot $18.62
Rust-Oleum gloss hunter green. 1 Quart Home Depot $18.62
Tape, paint brushes, rollers, misc. 24 Home Depot $32.00
Rubber Oar Sleeve 1 Pair Amazon (Oar-Deal brand) $23.21
3/4" Manila Rope 20 foot Sailorman, Ft. Lauderdale Fl. $16.05
#6 x 1 1/4" SS Screws, Leather 100 screws Amazon $17.01
