Exterior paint work.

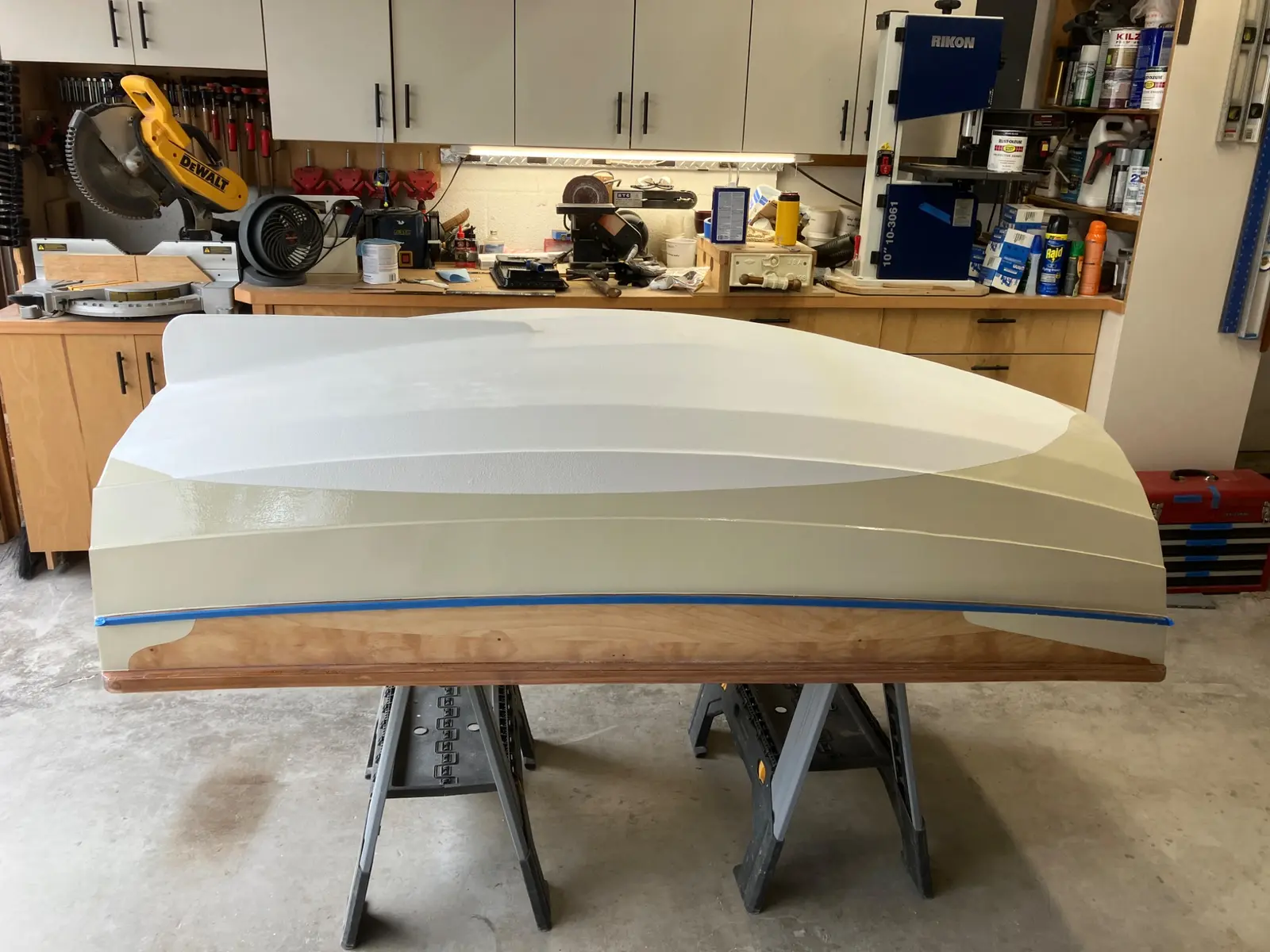

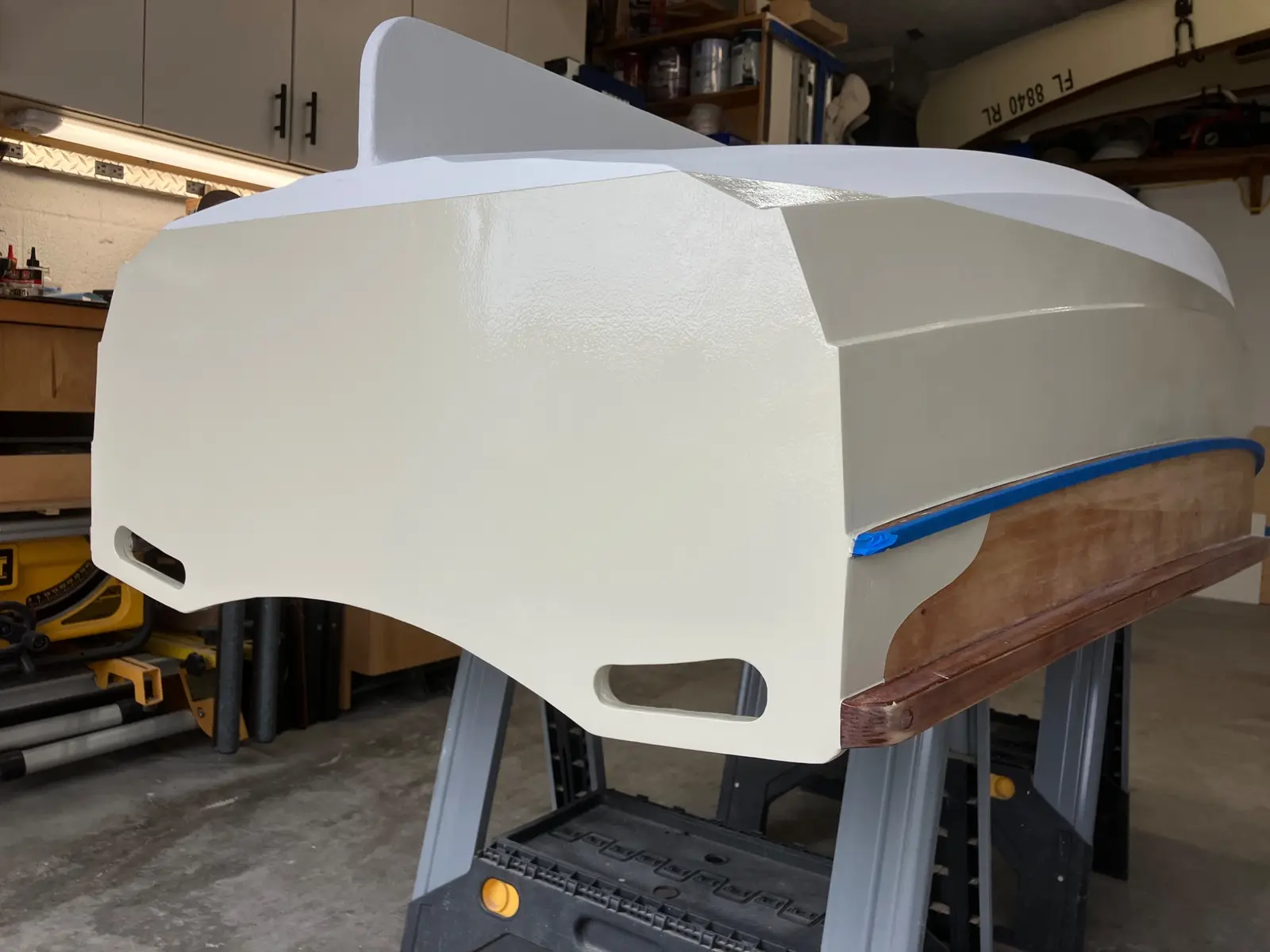

These pictures show the outside paint job almond Rust-Oleum enamel. I rolled and tipped this paint.
Ultralight Dinghy · new build
LaunchedI have been thinking about a dinghy for my boat. After looking around for a commercial built dinghy under 50 pounds, found that I may have to build it. So I ordered the PDF files from Chesapeake light craft to build the ultralight 6 foot dinghy. I am going to build it from scratch with no kit, maybe save a little bit of money in the process. Hopefully I can keep the weight under 45 pounds.

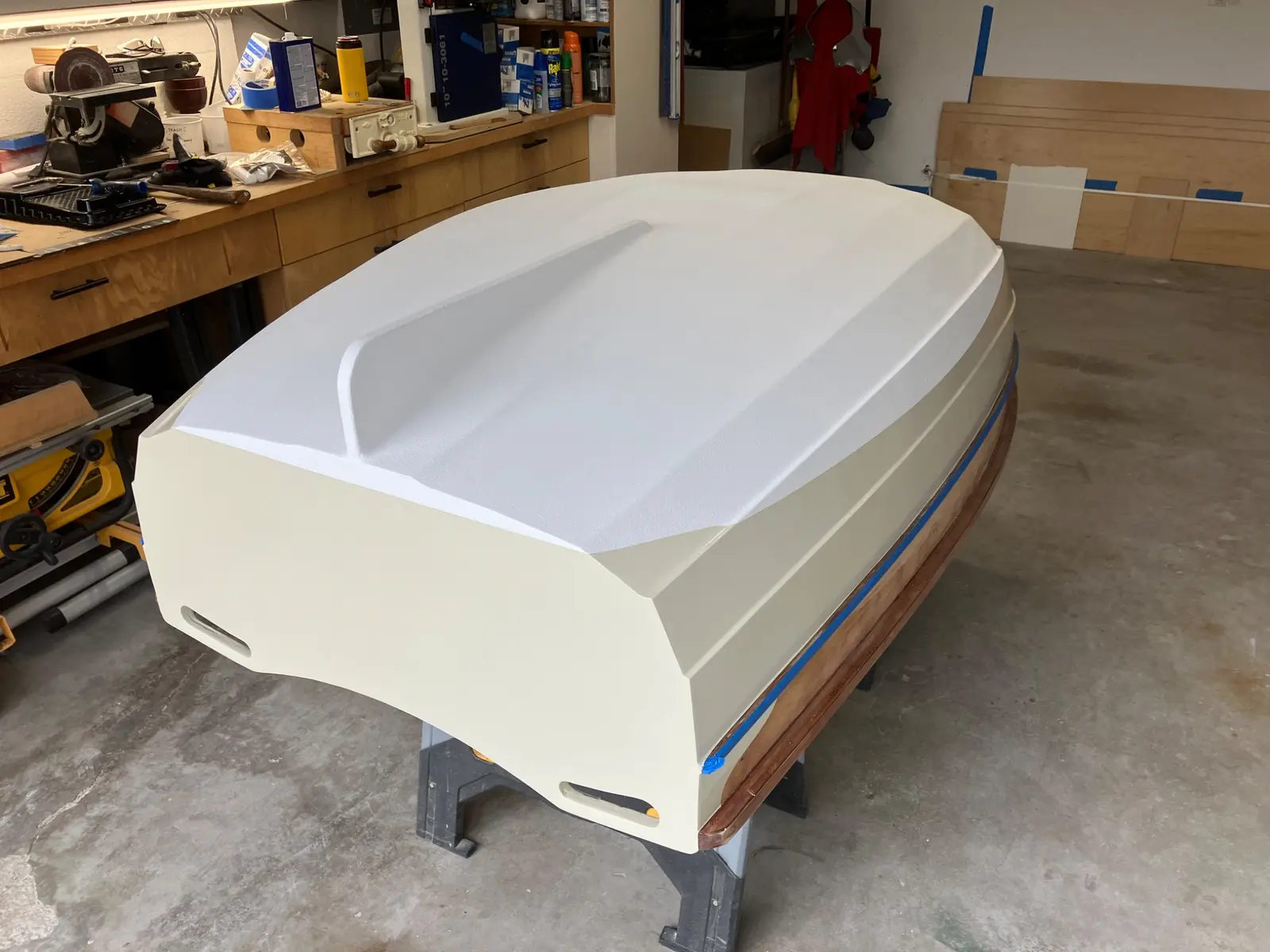

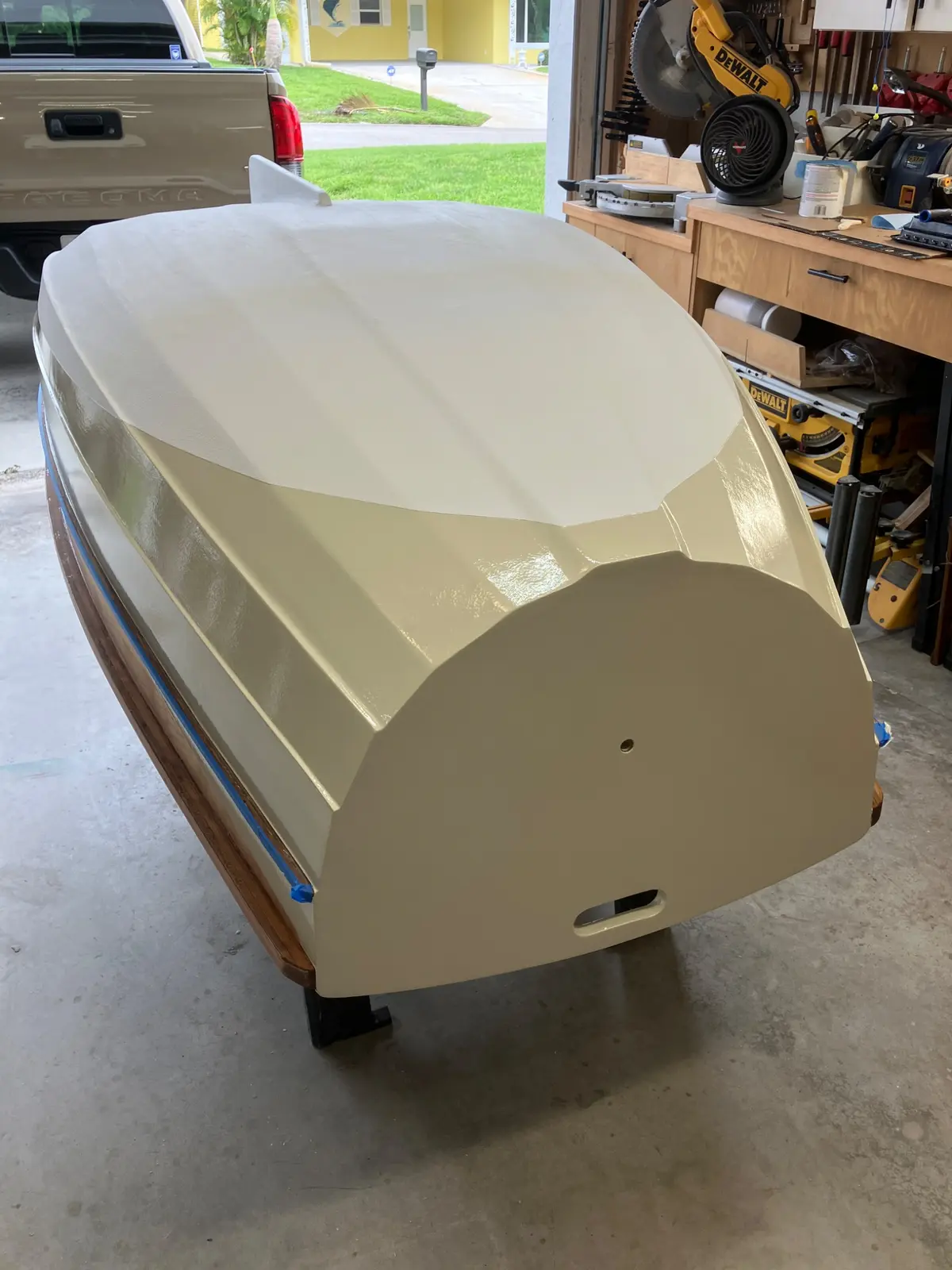

These pictures show the outside paint job almond Rust-Oleum enamel. I rolled and tipped this paint.
This is the finished boat, the day of sea trial, and launching of our beloved dingy "Ripple". We'll have to add a rub rail next.
"Ripple" testing the new dinghy. I wanted to see how it towed behind my bigger boat at 12 kts. and at 6 kts.. Next, tested the max persons, comfort, weight capacity, and stability of the boat. We were able to get 3 of us comfortably in the boat (380 lbs. total weight of crew aboard). Spent 45 minutes rowing around, switching positions without feeling like we are going to capsize anytime. This design is absolutely exceeds my expectations for a 6 foot dinghy. The finish weight is 55 pounds, 10 pounds over than the goal I was expecting. It could be the extra weight of the gel coat and accessories aboard. Totally acceptable for how I'm going to use this boat. I hope this log helps anyone that wants to take on this project.
Best wishes.
I decided on a rope hemp 3/4" inch rub rail to save on weight and to keep the traditional looks of the boat. It is mounted with 1 inch stainless steel screws that are spaced. 5 inches apart. I wrapped the handles in leather to secure the rope rub rail and accents to the finish boat. I plan on storing this boat inside 90% of its life. It came out way nicer than I would've expected.
Absolutely beautiful, great build!
Nobody else here is logging a Ultralight Dinghy yet. See the boat.
| Item | Qty | Supplier | Cost |
|---|---|---|---|
| Chesapeake light craft digital plans | One PDF file download | Chesapeake light craft | $89.00 |
| Router bits | 3 | Amazon | $58.56 |
| Harbor freight, Palm router | 1 router | Harbor freight | $90.94 |
| 3mm door skin plywood | 2 sheets | Home Depot | $30.00 |
| 1/4 " sheets of birch plywood | 2 sheets | Home Depot | $160.03 |
| 16 gauge wire steel | 1 roll | Home Depot | $13.47 |
| 4 ounce fiberglass cloth | 3 yards | Amazon | $21.39 |
| Slow cure high UV resistant epoxy resin | 1.5 gallon kit | Fiberglass supply depot, Fort Pierce, Fl. | $217.54 |
| 2" x 8" x 8' Western Cedar Plank | 1 (picked up in damaged bin) half price | Lowes | $21.39 |
| 6 ounce fiberglass cloth | 3 yards | Family donation to project (free) | $0.01 |
| Sea Dog Line Oar Sockets (bronze) | 2 sets | Amazon | $72.34 |
| Non-waxed white gel coat | 1 gallon | Fiberglass supply depot | $76.49 |
| Rust-Oleum gloss almond enamel paint | 1 quart | Home Depot | $18.62 |
| Rust-Oleum gloss hunter green. | 1 Quart | Home Depot | $18.62 |
| Tape, paint brushes, rollers, misc. | 24 | Home Depot | $32.00 |
| Rubber Oar Sleeve | 1 Pair | Amazon (Oar-Deal brand) | $23.21 |
| 3/4" Manila Rope | 20 foot | Sailorman, Ft. Lauderdale Fl. | $16.05 |
| #6 x 1 1/4" SS Screws, Leather | 100 screws | Amazon | $17.01 |
